Permutation test with a fitted classifier¶
This example illustrates how to run PValuePermutationTest on a multiclass
classification problem using a user-provided fitted
SplitConformalClassifier. We use the "top_k" conformity score instead of the
default one, compare an exchangeable and a non-exchangeable held-out dataset,
and then continue with the usual conformalization and prediction pipeline.
import matplotlib.pyplot as plt
import numpy as np
from sklearn.datasets import make_classification
from sklearn.neighbors import KNeighborsClassifier
from mapie.classification import SplitConformalClassifier
from mapie.exchangeability_testing.permutations import PValuePermutationTest
from mapie.utils import train_conformalize_test_split
Fit a conformal classifier¶
We first split the data into train, conformalization, and test subsets using
MAPIE's built-in utility. We fit a multiclass KNeighborsClassifier on the
training data, then wrap it in a SplitConformalClassifier with the "top_k"
conformity score in prefit mode. At this stage, the MAPIE classifier is
initialized but not conformalized yet.
RANDOM_STATE = 7
X_full, y_full = make_classification(
n_samples=360,
n_features=10,
n_informative=6,
n_redundant=0,
n_classes=3,
n_clusters_per_class=1,
random_state=RANDOM_STATE,
)
(
X_train,
X_conformalize,
X_test,
y_train,
y_conformalize,
y_test,
) = train_conformalize_test_split(
X_full,
y_full,
train_size=0.5,
conformalize_size=0.25,
test_size=0.25,
shuffle=False,
)
classifier = KNeighborsClassifier(n_neighbors=10)
classifier.fit(X_train, y_train)
mapie_classifier = SplitConformalClassifier(
estimator=classifier,
conformity_score="top_k",
prefit=True,
)
Test exchangeability on held-out data¶
To assess whether conformalization guarantees provided by MAPIE are valid, we have to test the exchangeability of the conformalization and test datasets. If the datasets are exchangeable, the conformalization guarantees are valid. If the datasets are not exchangeable, the conformalization guarantees are not valid.
X_eval = np.concatenate([X_conformalize, X_test], axis=0)
y_exchangeable = np.concatenate([y_conformalize, y_test], axis=0)
test_level = 0.1
num_permutations = 200
exchangeability_test = PValuePermutationTest(
test_level=test_level,
random_state=RANDOM_STATE,
num_permutations=num_permutations,
mapie_estimator=mapie_classifier,
)
exchangeability_test.run(X_eval, y_exchangeable)
exchangeability_detected = exchangeability_test.is_exchangeable
print("\nExchangeable classification dataset")
print("----------------------------------")
print(f"PValuePermutationTest: data exchangeability={exchangeability_detected}")
Out:
Exchangeable classification dataset
----------------------------------
PValuePermutationTest: data exchangeability=True

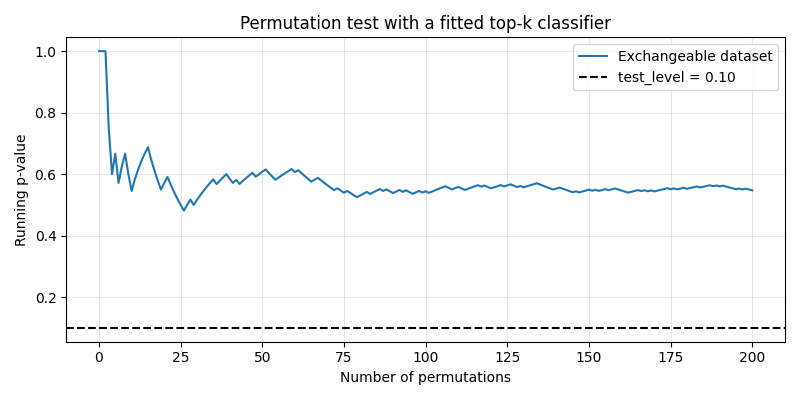

Plot the exchangeable case¶
test_level = exchangeability_test.test_level
plt.figure(figsize=(8, 4))
plt.plot(exchangeability_test.p_values, label="Exchangeable dataset")
plt.axhline(
test_level,
color="black",
linestyle="--",
label=f"test_level = {test_level:.2f}",
)
plt.xlabel("Number of permutations")
plt.ylabel("Running p-value")
plt.title("Permutation test with a fitted top-k classifier")
plt.grid(alpha=0.3)
plt.legend()
plt.tight_layout()
plt.show()
Continue with MAPIE¶
Because exchangeability of the original conformalization and test sets has been checked, we can continue with the standard MAPIE pipeline on the predefined conformalization and test subsets.
mapie_classifier.conformalize(X_conformalize, y_conformalize)
y_pred, y_pred_set = mapie_classifier.predict_set(X_test)
average_set_size = np.mean(np.sum(y_pred_set[:, :, 0], axis=1))
print("\nClassical MAPIE pipeline")
print("------------------------")
print(f"Average prediction-set size: {average_set_size:.2f}")
Out:

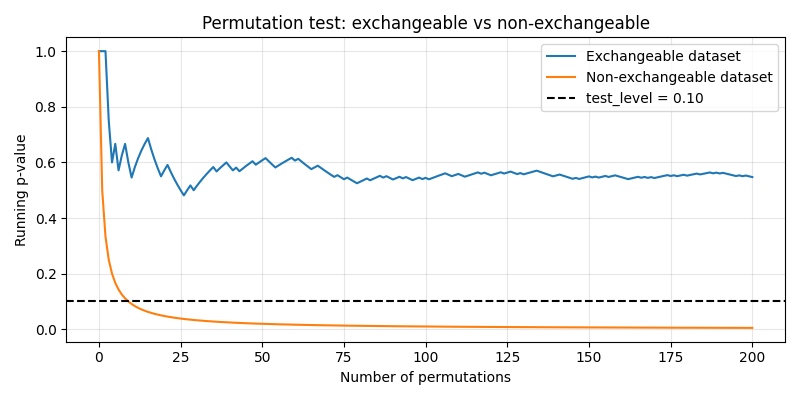

Create a non-exchangeable dataset¶
For illustration purposes, we now break exchangeability by shifting all labels of the test split. This induces a systematic mismatch between the second half of X_eval and the corresponding labels, while keeping the first half unchanged.
y_test_shifted = (y_test + 1) % len(np.unique(y_full))
y_non_exchangeable = np.concatenate([y_conformalize, y_test_shifted], axis=0)
non_exchangeability_test = PValuePermutationTest(
test_level=test_level,
random_state=RANDOM_STATE,
num_permutations=num_permutations,
mapie_estimator=mapie_classifier,
)
non_exchangeability_test.run(
X_eval,
y_non_exchangeable,
)
exchangeability_detected = non_exchangeability_test.is_exchangeable
print("\nNon-exchangeable classification dataset")
print("--------------------------------------")
print(f"PValuePermutationTest: data exchangeability={exchangeability_detected}")
first_rejection_idx = np.where(non_exchangeability_test.p_values <= test_level)[0]
if first_rejection_idx.size > 0:
first_detection_permutation = int(first_rejection_idx[0])
print(
"Non-exchangeability first detected at permutation "
f"{first_detection_permutation}."
)
else:
print(
"Non-exchangeability was not detected during the "
f"{num_permutations} permutations."
)
plt.figure(figsize=(8, 4))
plt.plot(exchangeability_test.p_values, label="Exchangeable dataset")
plt.plot(
non_exchangeability_test.p_values,
label="Non-exchangeable dataset",
)
plt.axhline(
test_level,
color="black",
linestyle="--",
label=f"test_level = {test_level:.2f}",
)
plt.xlabel("Number of permutations")
plt.ylabel("Running p-value")
plt.title("Permutation test: exchangeable vs non-exchangeable")
plt.grid(alpha=0.3)
plt.legend()
plt.tight_layout()
plt.show()
Out:
Non-exchangeable classification dataset
--------------------------------------
PValuePermutationTest: data exchangeability=False
Non-exchangeability first detected at permutation 9.
Total running time of the script: ( 0 minutes 1.104 seconds)
