Permutation test for exchangeability¶
This example illustrates how to run PValuePermutationTest and
SequentialMonteCarloTest on a toy regression problem.
We compare a dataset with exchangeable residuals to a
dataset where the second half of the residuals is shifted, which breaks the
exchangeability assumption used by conformal methods.
import matplotlib.pyplot as plt
import numpy as np
from mapie.exchangeability_testing.permutations import (
PValuePermutationTest,
SequentialMonteCarloTest,
)
Build two fixed datasets¶
We build a toy regression signal and compare two datasets:
- one with residuals centered around zero, which should be close to exchangeable
- one where the second half of the targets is shifted upward, breaking exchangeability
No estimator is provided explicitly in this example. The permutation tests
internally build and fit a default SplitConformalRegressor on a split of the data
passed to run. This is necessary to be able to compute non-conformity scores
which measure some sort of model prediction error. Permutation tests then test
the exchangeability of the non-conformity scores. This approach allows more flexibility
as complex dataset are reduced to a list of values. As non-conformity scores are
exchangeability preserving transformations, the exchangeability test result is
valid for the original dataset.
# If an estimator fitted on some training data is provided, the permutation tests
# should be run on the test data. Results would be better as no split would be needed
# to fit a model internally.
rng = np.random.RandomState(0)
X = np.linspace(0.1, 0.9, 500).reshape(-1, 1)
y_exchangeable = 3 * X.ravel() + rng.normal(scale=0.1, size=X.shape[0])
y_shifted = y_exchangeable.copy()
y_shifted[len(y_shifted) // 2 :] += 0.8
Run the exchangeable case¶
We start with a dataset that should satisfy exchangeability.
test_level = 0.1
num_permutations = 200
exchangeable_pvalue_test = PValuePermutationTest(
test_level=test_level,
random_state=7,
num_permutations=num_permutations,
)
exchangeable_aggressive_test = SequentialMonteCarloTest(
strategy="aggressive",
test_level=test_level,
random_state=7,
num_permutations=num_permutations,
)
exchangeable_binomial_test = SequentialMonteCarloTest(
strategy="binomial",
test_level=test_level,
random_state=7,
num_permutations=num_permutations,
)
exchangeable_binomial_mixture_test = SequentialMonteCarloTest(
strategy="binomial_mixture",
test_level=test_level,
random_state=7,
num_permutations=num_permutations,
)
exchangeable_pvalue_test.run(X, y_exchangeable)
exchangeable_pvalue_detected = exchangeable_pvalue_test.is_exchangeable
exchangeable_aggressive_test.run(X, y_exchangeable)
exchangeable_aggressive_detected = exchangeable_aggressive_test.is_exchangeable
exchangeable_binomial_test.run(X, y_exchangeable)
exchangeable_binomial_detected = exchangeable_binomial_test.is_exchangeable
exchangeable_binomial_mixture_test.run(X, y_exchangeable)
exchangeable_binomial_mixture_detected = (
exchangeable_binomial_mixture_test.is_exchangeable
)
print("\nExchangeable dataset")
print("--------------------")
print(
f"PValuePermutationTest: data exchangeability={exchangeable_pvalue_detected}. Detection after {len(exchangeable_pvalue_test.p_values) - 1} permutations."
)
print(
f"SequentialMonteCarloTest (aggressive): data exchangeability={exchangeable_aggressive_detected}. Detection after {len(exchangeable_aggressive_test.p_values) - 1} permutations."
)
print(
f"SequentialMonteCarloTest (binomial): data exchangeability={exchangeable_binomial_detected}. Detection after {len(exchangeable_binomial_test.p_values) - 1} permutations."
)
print(
"SequentialMonteCarloTest (binomial_mixture): "
f"data exchangeability={exchangeable_binomial_mixture_detected}. Detection after {len(exchangeable_binomial_mixture_test.p_values) - 1} permutations."
)
test_level = exchangeable_pvalue_test.test_level
plt.figure(figsize=(8, 4))
plt.plot(exchangeable_pvalue_test.p_values, label="PValuePermutationTest", zorder=4)
plt.plot(
exchangeable_aggressive_test.p_values,
label="SMC aggressive",
linestyle="-",
linewidth=3.0,
zorder=1,
)
plt.plot(
exchangeable_binomial_test.p_values,
label="SMC binomial",
linestyle="--",
linewidth=2.0,
zorder=2,
)
plt.plot(
exchangeable_binomial_mixture_test.p_values,
label="SMC binomial_mixture",
linestyle=":",
linewidth=2.0,
zorder=3,
)
plt.axhline(
test_level,
color="black",
linestyle="--",
label=f"test_level = {test_level:.2f}",
)
plt.xlabel("Number of permutations")
plt.ylabel("Running p-value")

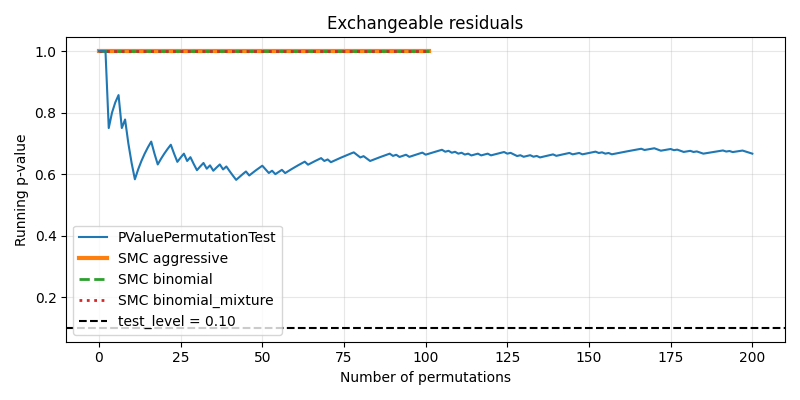

plt.title("Exchangeable residuals")
plt.grid(alpha=0.3)
plt.legend()
plt.tight_layout()
plt.show()
Out:
Exchangeable dataset
--------------------
PValuePermutationTest: data exchangeability=True. Detection after 200 permutations.
SequentialMonteCarloTest (aggressive): data exchangeability=True. Detection after 101 permutations.
SequentialMonteCarloTest (binomial): data exchangeability=True. Detection after 101 permutations.
SequentialMonteCarloTest (binomial_mixture): data exchangeability=True. Detection after 101 permutations.
Run the non-exchangeable case¶
We now repeat the same comparison on the shifted dataset.
shifted_pvalue_test = PValuePermutationTest(
test_level=test_level,
random_state=7,
num_permutations=num_permutations,
)
shifted_aggressive_test = SequentialMonteCarloTest(
strategy="aggressive",
test_level=test_level,
random_state=7,
num_permutations=num_permutations,
)
shifted_binomial_test = SequentialMonteCarloTest(
strategy="binomial",
test_level=test_level,
random_state=7,
num_permutations=num_permutations,
)
shifted_binomial_mixture_test = SequentialMonteCarloTest(
strategy="binomial_mixture",
test_level=test_level,
random_state=7,
num_permutations=num_permutations,
)
shifted_pvalue_test.run(X, y_shifted)
shifted_pvalue_detected = shifted_pvalue_test.is_exchangeable
shifted_aggressive_test.run(X, y_shifted)
shifted_aggressive_detected = shifted_aggressive_test.is_exchangeable
shifted_binomial_test.run(X, y_shifted)
shifted_binomial_detected = shifted_binomial_test.is_exchangeable
shifted_binomial_mixture_test.run(X, y_shifted)
shifted_binomial_mixture_detected = shifted_binomial_mixture_test.is_exchangeable
print("\nNon-exchangeable dataset")
print("------------------------")
print(
f"PValuePermutationTest: data exchangeability={shifted_pvalue_detected}. Detection after {len(shifted_pvalue_test.p_values) - 1} permutations."
)
print(
f"SequentialMonteCarloTest (aggressive): data exchangeability={shifted_aggressive_detected}. Detection after {len(shifted_aggressive_test.p_values) - 1} permutations."
)
print(
f"SequentialMonteCarloTest (binomial): data exchangeability={shifted_binomial_detected}. Detection after {len(shifted_binomial_test.p_values) - 1} permutations."
)
print(
"SequentialMonteCarloTest (binomial_mixture): "
f"data exchangeability={shifted_binomial_mixture_detected}. Detection after {len(shifted_binomial_mixture_test.p_values) - 1} permutations."
)
plt.figure(figsize=(8, 4))
plt.plot(shifted_pvalue_test.p_values, label="PValuePermutationTest", zorder=4)
plt.plot(
shifted_aggressive_test.p_values,
label="SMC aggressive",
linestyle="-",
linewidth=3.0,
zorder=1,
)
plt.plot(
shifted_binomial_test.p_values,
label="SMC binomial",
linestyle="--",
linewidth=2.0,
zorder=2,
)
plt.plot(
shifted_binomial_mixture_test.p_values,
label="SMC binomial_mixture",
linestyle=":",
linewidth=2.0,
zorder=3,
)
plt.axhline(
test_level,
color="black",
linestyle="--",
label=f"test_level = {test_level:.2f}",
)
plt.xlabel("Number of permutations")
plt.ylabel("Running p-value")

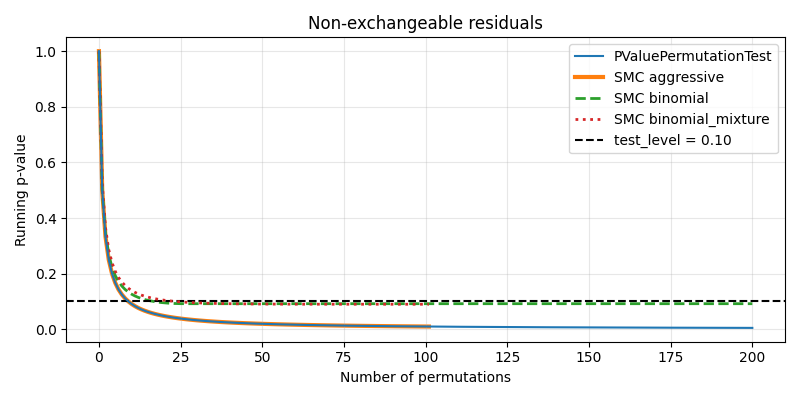

plt.title("Non-exchangeable residuals")
plt.grid(alpha=0.3)
plt.legend()
plt.tight_layout()
plt.show()
Out:
Non-exchangeable dataset
------------------------
PValuePermutationTest: data exchangeability=False. Detection after 200 permutations.
SequentialMonteCarloTest (aggressive): data exchangeability=False. Detection after 101 permutations.
SequentialMonteCarloTest (binomial): data exchangeability=False. Detection after 200 permutations.
SequentialMonteCarloTest (binomial_mixture): data exchangeability=False. Detection after 101 permutations.
Total running time of the script: ( 0 minutes 4.558 seconds)
Download Python source code: plot_permutation_test.py
