Classification — Theoretical Description

Terminology

In theoretical parts of the documentation:

  • alpha is equivalent to 1 - confidence_level — it can be seen as a risk level.
  • calibrate and calibration are equivalent to conformalize and conformalization.

Three methods for multi-class uncertainty quantification have been implemented in MAPIE: LAC (Least Ambiguous set-valued Classifier) 1, APS (Adaptive Prediction Sets) 2 3, and Top-K 3.

Classification methods

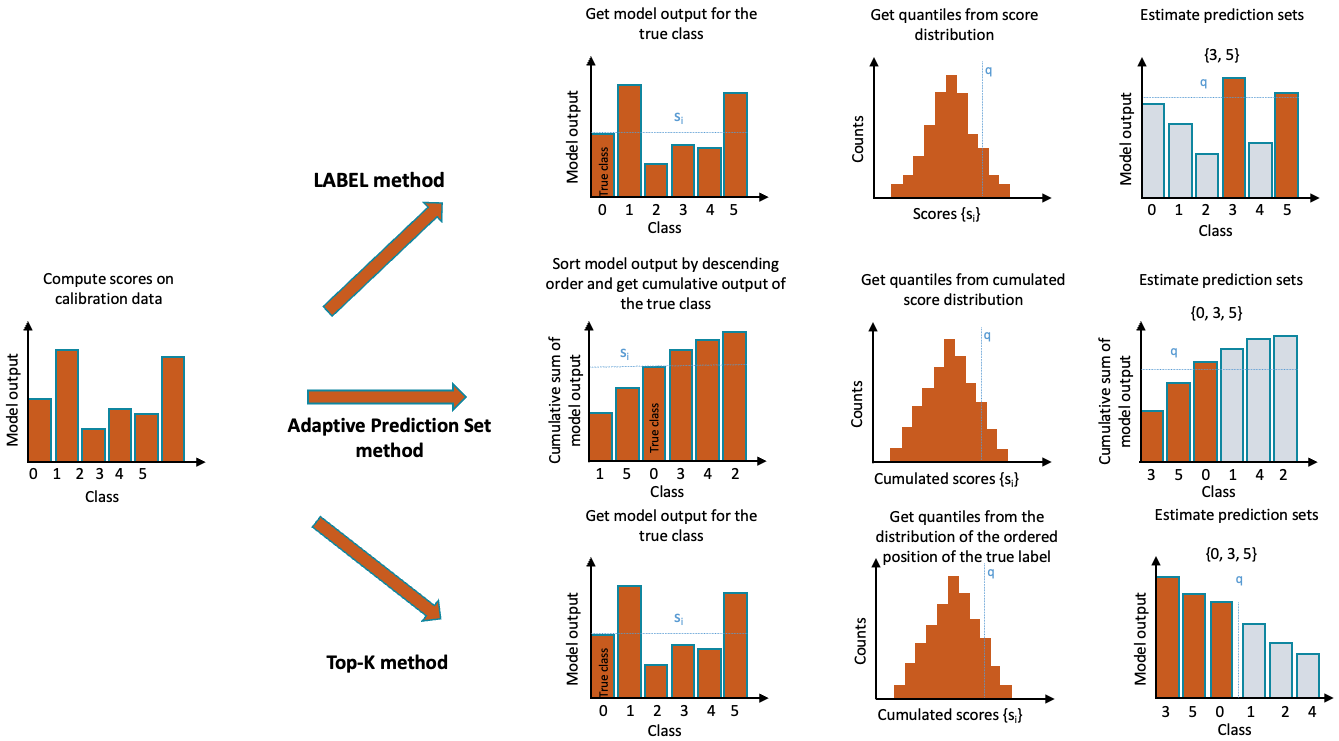

Illustration of the three methods implemented in MAPIE.

Mathematical Setting

For a classification problem in a standard i.i.d. case, our training data \((X, Y) = \{(x_1, y_1), \ldots, (x_n, y_n)\}\) has an unknown distribution \(P_{X, Y}\).

For any risk level \(\alpha \in (0, 1)\), the methods allow constructing a prediction set \(\hat{C}_{n, \alpha}(X_{n+1})\) with a marginal coverage guarantee:

\[ P \{Y_{n+1} \in \hat{C}_{n, \alpha}(X_{n+1}) \} \geq 1 - \alpha \]

For a typical \(\alpha = 10\%\), we construct prediction sets that contain the true observations for at least 90% of new test data points.

Info

The guarantee applies only to marginal coverage, not conditional coverage \(P \{Y_{n+1} \in \hat{C}_{n, \alpha}(X_{n+1}) | X_{n+1} = x_{n+1} \}\) which depends on the location of the test point.

1. LAC

In the LAC method, the conformity score is one minus the score of the true label:

\[ s_i(X_i, Y_i) = 1 - \hat{\mu}(X_i)_{Y_i} \]

The quantile \(\hat{q}\) is computed as:

\[ \hat{q} = \text{Quantile}\left(s_1, \ldots, s_n ; \frac{\lceil(n+1)(1-\alpha)\rceil}{n}\right) \]

The prediction set includes all labels with score higher than the threshold:

\[ \hat{C}(X_{\text{test}}) = \{y : \hat{\mu}(X_{\text{test}})_y \geq 1 - \hat{q}\} \]

Warning

Although LAC generally results in small prediction sets, it tends to produce empty sets when the model is uncertain (e.g., at the border between two classes).

2. Top-K

Introduced in 3, the Top-K method gives the same prediction set size for all observations. The conformity score is the rank of the true label:

\[ s_i(X_i, Y_i) = j \quad \text{where} \quad Y_i = \pi_j \quad \text{and} \quad \hat{\mu}(X_i)_{\pi_1} > \cdots > \hat{\mu}(X_i)_{\pi_n} \]
\[ \hat{q} = \left\lceil \text{Quantile}\left(s_1, \ldots, s_n ; \frac{\lceil(n+1)(1-\alpha)\rceil}{n}\right) \right\rceil \]
\[ \hat{C}(X_{\text{test}}) = \{\pi_1, \ldots, \pi_{\hat{q}}\} \]

3. Adaptive Prediction Sets (APS)

The APS method overcomes LAC's empty set problem by constructing non-empty prediction sets. Conformity scores are computed by summing ranked scores until reaching the true label:

\[ s_i(X_i, Y_i) = \sum^k_{j=1} \hat{\mu}(X_i)_{\pi_j} \quad \text{where} \quad Y_i = \pi_k \]

Prediction sets are built similarly:

\[ \hat{C}(X_{\text{test}}) = \{\pi_1, \ldots, \pi_k\} \quad \text{where} \quad k = \inf\left\{k : \sum^k_{j=1} \hat{\mu}(X_{\text{test}})_{\pi_j} \geq \hat{q}\right\} \]

By default, the label whose cumulative score exceeds the quantile is included. Its incorporation can also be randomized for tighter effective coverage 2 3.

4. Regularized Adaptive Prediction Sets (RAPS)

RAPS 3 improves APS by regularizing to avoid very large prediction sets:

\[ s_i(X_i, Y_i) = \sum^k_{j=1} \hat{\mu}(X_i)_{\pi_j} + \lambda (k - k_{\text{reg}})^+ \quad \text{where} \quad Y_i = \pi_k \]

Where:

  • \((z)^+\) denotes the positive part of \(z\)
  • \(k_{\text{reg}}\) is the optimal set size (determined by the Top-K method on a held-out split)
  • \(\lambda\) is a regularization parameter (grid search over \(\{0.001, 0.01, 0.1, 0.2, 0.5\}\))

Prediction set construction:

\[ \hat{C}(X_{\text{test}}) = \{\pi_1, \ldots, \pi_k\} \quad \text{where} \quad k = \inf\left\{k : \sum^k_{j=1} \hat{\mu}(X_{\text{test}})_{\pi_j} + \lambda(k - k_{\text{reg}})^+ \geq \hat{q}\right\} \]

Exact Coverage via Randomization

To achieve exact coverage, randomization on the last label can be applied:

  1. Define \(V_i = \frac{s_i(X_i, Y_i) - \hat{q}_{1-\alpha}}{\hat{\mu}(X_i)_{\pi_k} + \lambda \mathbb{1}(k > k_{\text{reg}})}\)
  2. Compare each \(V_i\) to \(U \sim \text{Unif}(0, 1)\)
  3. If \(V_i \leq U\), the last included label is removed.

5. Split- and Cross-Conformal Strategies

MAPIE includes both split- and cross-conformal strategies for LAC and APS, but only split-conformal for Top-K.

The cross-conformal implementation follows Algorithm 2 of 2:

  1. Split training into \(K\) disjoint subsets.
  2. Fit \(K\) classification functions \(\hat{\mu}_{-S_k}\).
  3. Compute out-of-fold conformity scores.
  4. For new test points, compare conformity scores to decide label inclusion.

For APS (see eq. 11 of 2):

\[ C_{n, \alpha}(X_{n+1}) = \Big\{ y \in \mathcal{Y} : \sum_{i=1}^n \mathbf{1} \Big[ E(X_i, Y_i, U_i; \hat{\pi}^{k(i)}) < E(X_{n+1}, y, U_{n+1}; \hat{\pi}^{k(i)}) \Big] < (1-\alpha)(n+1) \Big\} \]

References

  1. Sadinle, Mauricio, Jing Lei, & Larry Wasserman. "Least Ambiguous Set-Valued Classifiers With Bounded Error Levels." JASA, 114:525, 223-234, 2019. ↩

  2. Romano, Yaniv, Matteo Sesia and Emmanuel J. Candès. "Classification with Valid and Adaptive Coverage." NeurIPS 2020 (spotlight). ↩↩↩↩

  3. Angelopoulos, Anastasios N., Stephen Bates, Michael Jordan and Jitendra Malik. "Uncertainty Sets for Image Classifiers using Conformal Prediction." ICLR 2021. ↩↩↩↩↩
