Control the risk of a multi-label classifier¶
In this example, we explain how to perform risk control for multi-label classification using the Learn-Then-Test (LTT) procedure implemented in MAPIE.
# sphinx_gallery_thumbnail_number = 4
import matplotlib.pyplot as plt
import numpy as np
from sklearn.metrics import precision_score
from sklearn.model_selection import train_test_split
from sklearn.multioutput import MultiOutputClassifier
from sklearn.naive_bayes import GaussianNB
from mapie.risk_control import MultiLabelClassificationController
RANDOM_STATE = 42
First, we generate a two-dimensional toy dataset with three possible labels. The idea is to create a triangle where the observations on the edges have only one label, those on the vertices have two labels (those of the two edges) and the center have all the labels.
# Generate synthetic dataset
np.random.seed(RANDOM_STATE)
centers = [(0, 10), (-5, 0), (5, 0), (0, 5), (0, 0), (-4, 5), (5, 5)]
covs = [
np.eye(2),
np.eye(2),
np.eye(2),
np.diag([5, 5]),
np.diag([3, 1]),
np.array([[4, 3], [3, 4]]),
np.array([[3, -2], [-2, 3]]),
]
x_min, x_max, y_min, y_max, step = -15, 15, -5, 15, 0.1
n_samples = 800
X = np.vstack(
[
np.random.multivariate_normal(center, cov, n_samples)
for center, cov in zip(centers, covs)
]
)
classes = [[1, 0, 1], [1, 1, 0], [0, 1, 1], [1, 1, 1], [0, 1, 0], [1, 0, 0], [0, 0, 1]]
y = np.vstack([np.full((n_samples, 3), row) for row in classes])
# Split the dataset into training, calibration and test sets.
X_train_cal, X_test, y_train_cal, y_test = train_test_split(X, y, test_size=0.2)
X_train, X_calib, y_train, y_calib = train_test_split(
X_train_cal, y_train_cal, test_size=0.25
)

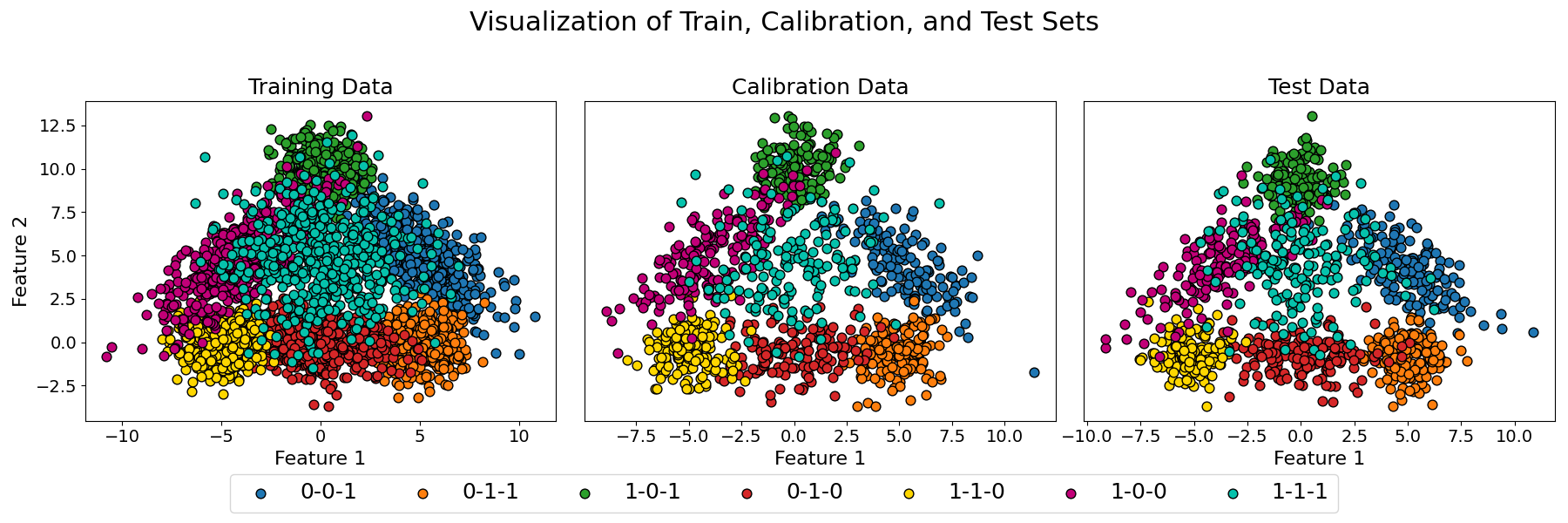

# Plot the three datasets to visualize the distribution of the labels.
colors = {
(0, 0, 1): {"color": "#1f77b4", "lac": "0-0-1"},
(0, 1, 1): {"color": "#ff7f0e", "lac": "0-1-1"},
(1, 0, 1): {"color": "#2ca02c", "lac": "1-0-1"},
(0, 1, 0): {"color": "#d62728", "lac": "0-1-0"},
(1, 1, 0): {"color": "#ffd700", "lac": "1-1-0"},
(1, 0, 0): {"color": "#c20078", "lac": "1-0-0"},
(1, 1, 1): {"color": "#06C2AC", "lac": "1-1-1"},
}
fig, axes = plt.subplots(1, 3, figsize=(18, 6))
titles = ["Training Data", "Calibration Data", "Test Data"]
datasets = [(X_train, y_train), (X_calib, y_calib), (X_test, y_test)]
for i, (ax, (X_data, y_data), title) in enumerate(zip(axes, datasets, titles)):
for label, props in colors.items():
label = np.array(label)
mask = np.all(y_data == label, axis=1)
ax.scatter(
X_data[mask, 0],
X_data[mask, 1],
color=props["color"],
edgecolors="k",
s=60,
alpha=1,
label=props["lac"] if i == 0 else None,
)
ax.set_title(title, fontsize=18)
ax.set_xlabel("Feature 1", fontsize=16)
ax.tick_params(labelsize=14)
if i == 0:
ax.set_ylabel("Feature 2", fontsize=16)
else:
ax.set_ylabel("")
ax.set_yticks([])
handles, labels = axes[0].get_legend_handles_labels()
fig.legend(
handles,
labels,
loc="lower center",
bbox_to_anchor=(0.5, 0),
ncol=7,
fontsize=18,
)
plt.suptitle("Visualization of Train, Calibration, and Test Sets", fontsize=22)
plt.tight_layout(rect=[0, 0.08, 1, 0.95])
plt.show()
Second, we fit a MultiOutputClassifier by training one Gaussian Naive Bayes classifier per label. Using MultiOutputClassifier allows us to extend classifiers that do not natively support multi-label classification.
Next, we initialize a MultiLabelClassificationController
using the probability estimation function from the fitted estimator:
clf.predict_proba, a chosen risk ("precision" in this example),
a target risk level, and a confidence level. Then we use the calibration data
to compute statistically valid thresholds using a risk control procedure.
When risk="precision", the controller relies on the LTT procedure,
which is designed to handle non-monotonic risks.
Alternatively, risk="recall" can also be used.
In that case, the controller relies on monotonicity and uses either:
- RCPS (Risk-Controlling Prediction Sets), which provides a probabilistic guarantee,
- CRC (Conformal Risk Control), which provides a guarantee in expectation.
Please refer to the theoretical description of risk control in the MAPIE documentation for more details.
target_precision = 0.8
confidence_level = 0.9
mcc = MultiLabelClassificationController(
predict_function=clf.predict_proba,
risk="precision",
method="ltt",
predict_params=np.arange(0.01, 1, 0.01),
target_level=target_precision,
confidence_level=confidence_level,
)
mcc.calibrate(X_calib, y_calib)
print(
f"{len(mcc.valid_predict_params[0])} thresholds found that guarantee a precision of "
f"at least {target_precision} with a confidence of {confidence_level}. "
f"The best threshold is: {mcc.best_predict_param[0]:.3f}."
)
Out:
53 thresholds found that guarantee a precision of at least 0.8 with a confidence of 0.9. The best threshold is: 0.410.

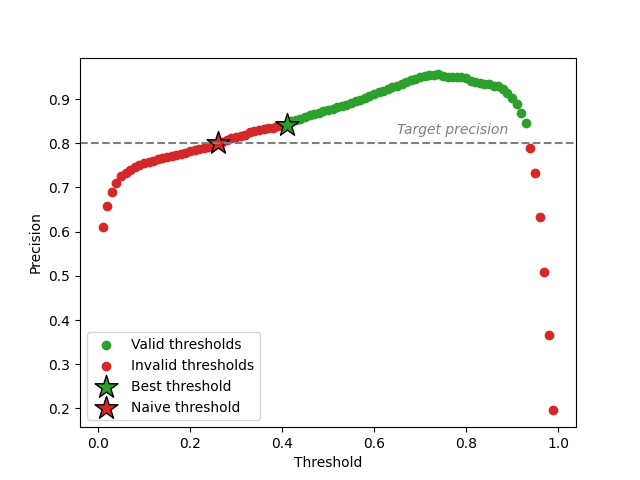

In the plot below, we visualize how the threshold values impact precision, and what thresholds have been computed as statistically guaranteed.
tested_thresholds = mcc.predict_params
precisions = 1 - mcc.r_hat # risk is defined as 1 - precision
naive_threshold_index = np.argmin(
np.where(precisions >= target_precision, precisions - target_precision, np.inf)
)
valid_thresholds_indices = mcc.valid_index[0] # valid_index is a list of lists
mask_invalid_threshold = np.ones(len(tested_thresholds), dtype=bool)
mask_invalid_threshold[valid_thresholds_indices] = False
best_threshold_index = np.where(tested_thresholds == mcc.best_predict_param[0])[0][0]
probas_test = clf.predict_proba(X_test)
proba_positive = np.column_stack([p[:, 1] for p in probas_test])
y_pred_naive = (proba_positive >= tested_thresholds[naive_threshold_index]).astype(int)
precision_naive_threshold = precision_score(
y_test, y_pred_naive, average=None, zero_division=0
).mean()
y_pred_ltt_best_threshold = (
proba_positive >= tested_thresholds[best_threshold_index]
).astype(int)
precision_best_ltt_threshold = precision_score(
y_test, y_pred_ltt_best_threshold, average=None, zero_division=0
).mean()
plt.figure()
plt.scatter(
tested_thresholds[valid_thresholds_indices],
precisions[valid_thresholds_indices],
c="tab:green",
label="Valid thresholds",
)
plt.scatter(
tested_thresholds[mask_invalid_threshold],
precisions[mask_invalid_threshold],
c="tab:red",
label="Invalid thresholds",
)
plt.scatter(
tested_thresholds[best_threshold_index],
precisions[best_threshold_index],
c="tab:green",
label="Best threshold",
marker="*",
edgecolors="k",
s=300,
)
plt.scatter(
tested_thresholds[naive_threshold_index],
precisions[naive_threshold_index],
c="tab:red",
label="Naive threshold",
marker="*",
edgecolors="k",
s=300,
)
plt.axhline(target_precision, color="tab:gray", linestyle="--")
plt.text(
0.65,
target_precision + 0.02,
"Target precision",
color="tab:gray",
fontstyle="italic",
)
plt.xlabel("Threshold")
plt.ylabel("Precision")
plt.legend()
plt.show()
print(
"With the naive threshold, the precision is:\n "
f"- {precisions[naive_threshold_index]:.3f} on the calibration set\n "
f"- {precision_naive_threshold:.3f} on the test set."
)
print(
"\n\nWith risk control, the precision is:\n "
f"- {precisions[best_threshold_index]:.3f} on the calibration set\n "
f"- {precision_best_ltt_threshold:.3f} on the test set."
)
Out:
With the naive threshold, the precision is:
- 0.800 on the calibration set
- 0.782 on the test set.
With risk control, the precision is:
- 0.842 on the calibration set
- 0.833 on the test set.
The naive threshold is selected on the calibration set to match the target precision, but it does not provide any statistical guarantee on unseen data.
In contrast, the threshold selected by risk control takes into account the uncertainty due to the finite calibration sample size and guarantees that the target precision is met on unseen data with high probability.
As illustrated above, not all thresholds achieving a precision higher than the target are statistically valid. This highlights the importance of risk control when deploying multi-label classifiers in practice.
