Control multiple risks of a binary classifier¶

In this example, we explain how to do multi-risk control for binary classification with MAPIE.

# sphinx_gallery_thumbnail_number = 2

import warnings

import matplotlib.pyplot as plt
import numpy as np
from sklearn.datasets import make_circles
from sklearn.inspection import DecisionBoundaryDisplay
from sklearn.metrics import precision_score, recall_score
from sklearn.model_selection import FixedThresholdClassifier
from sklearn.neural_network import MLPClassifier

from mapie.risk_control import BinaryClassificationController
from mapie.utils import train_conformalize_test_split

RANDOM_STATE = 1

First, load the dataset and then split it into training, calibration (for conformalization), and test sets.

X, y = make_circles(n_samples=5000, noise=0.3, factor=0.3, random_state=RANDOM_STATE)
(X_train, X_calib, X_test, y_train, y_calib, y_test) = train_conformalize_test_split(
    X,
    y,
    train_size=0.8,
    conformalize_size=0.1,
    test_size=0.1,
    random_state=RANDOM_STATE,
)

# Plot the three datasets to visualize the distribution of the two classes.
fig, axes = plt.subplots(1, 3, figsize=(18, 6))
titles = ["Training Data", "Calibration Data", "Test Data"]
datasets = [(X_train, y_train), (X_calib, y_calib), (X_test, y_test)]

for i, (ax, (X_data, y_data), title) in enumerate(zip(axes, datasets, titles)):
    ax.scatter(
        X_data[y_data == 0, 0],
        X_data[y_data == 0, 1],
        edgecolors="k",
        c="tab:blue",
        label='"negative" class',
        alpha=0.5,
    )
    ax.scatter(
        X_data[y_data == 1, 0],
        X_data[y_data == 1, 1],
        edgecolors="k",
        c="tab:red",
        label='"positive" class',
        alpha=0.5,
    )
    ax.set_title(title, fontsize=18)
    ax.set_xlabel("Feature 1", fontsize=16)
    ax.tick_params(labelsize=14)

    if i == 0:
        ax.set_ylabel("Feature 2", fontsize=16)
    else:
        ax.set_ylabel("")
        ax.set_yticks([])

handles, labels = axes[0].get_legend_handles_labels()
fig.legend(
    handles,
    labels,
    loc="lower center",
    bbox_to_anchor=(0.5, -0.01),
    ncol=2,
    fontsize=16,
)

plt.suptitle("Visualization of Train, Calibration, and Test Sets", fontsize=22)
plt.tight_layout(rect=[0, 0.05, 1, 0.95])
plt.show()

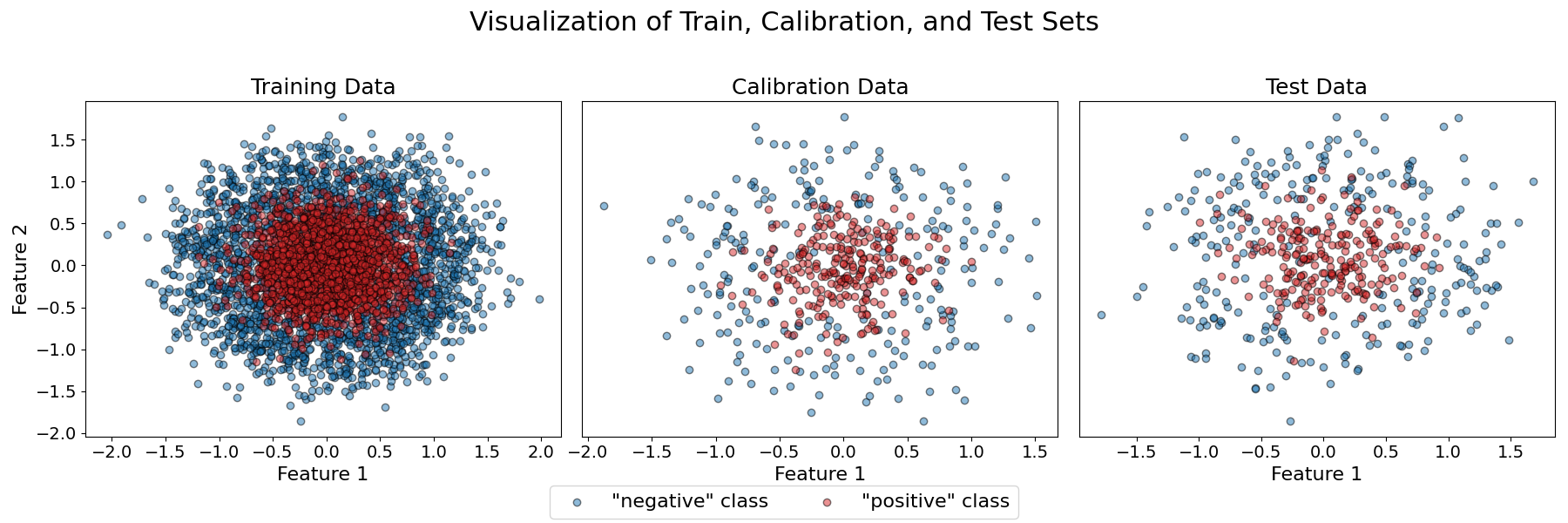

Visualization of Train, Calibration, and Test Sets, Training Data, Calibration Data, Test Data

Second, fit a Multi-layer Perceptron classifier on the training data.

clf = MLPClassifier(max_iter=150, random_state=RANDOM_STATE)
clf.fit(X_train, y_train)

MLPClassifier(max_iter=150, random_state=1)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Next, we initialize a BinaryClassificationController using the probability estimation function from the fitted estimator: clf.predict_proba, a list of risk or performance metric (here, ["precision", "recall"]), a list target risk level, and a single confidence level. Then we use the calibration data to compute statistically guaranteed thresholds using a multi-risk control method.

Different risks or performance metrics have been implemented, such as precision, recall and accuracy, but you can also implement your own custom functions using BinaryClassificationRisk and choose your own secondary objective (passed in best_predict_param_choice)

Note that if the secondary objective is not specified, the first risk in the list is used as the secondary objective by default. Here, we choose "recall" as the secondary objective.

Here we consider the list of risks ["precision", "recall"] and choose "recall" as the secondary objective. Furthermore, we consider two scenarios according to different target levels for precision and recall.

The following table summarizes the configuration of both scenarios:

+-------------------------------+------------------------+------------------------+ | Parameter | Scenario 1 | Scenario 2 | +-------------------------------+------------------------+------------------------+ | List of risks | ["precision", "recall"]| ["precision", "recall"]| +-------------------------------+------------------------+------------------------+ | List of target levels | [0.75, 0.70] | [0.85, 0.80] | +-------------------------------+------------------------+------------------------+ | Confidence level | 0.9 | 0.9 | +-------------------------------+------------------------+------------------------+ | Best predict param choice | "recall" | "recall" | +-------------------------------+------------------------+------------------------+

Both scenarios use the same list of risks and best parameter choice, but with different target levels for precision and recall.

For each scenario, we first fit two mono-risk controllers, followed by a multi-risk controller. The objective is to illustrate that, even when mono-risk controllers find valid thresholds for both risks, the multi-risk controller may not find any threshold that satisfies both simultaneously with statistical guarantees.

Note that in the mono-risk case, the best predict parameter is left as "auto". See BinaryClassificationController documentation for more details.

# Scenario 1:
target_levels_1 = [0.75, 0.70]
confidence_level_1 = 0.9

# Mono risk case
bcc_precision_1 = BinaryClassificationController(
    predict_function=clf.predict_proba,
    risk="precision",
    target_level=target_levels_1[0],
    confidence_level=confidence_level_1,
    best_predict_param_choice="auto",
)
bcc_precision_1.calibrate(X_calib, y_calib)

bcc_recall_1 = BinaryClassificationController(
    predict_function=clf.predict_proba,
    risk="recall",
    target_level=target_levels_1[1],
    confidence_level=confidence_level_1,
    best_predict_param_choice="auto",
)
bcc_recall_1.calibrate(X_calib, y_calib)

# Multi risk case
bcc_1 = BinaryClassificationController(
    predict_function=clf.predict_proba,
    risk=["precision", "recall"],
    target_level=target_levels_1,
    confidence_level=confidence_level_1,
    best_predict_param_choice="recall",
)
bcc_1.calibrate(X_calib, y_calib)

print(
    f"Scenario 1 - Multiple risks : {len(bcc_1.valid_predict_params)} "
    f"thresholds found that guarantee a precision of at least {target_levels_1[0]}\n"
    f"and a recall of at least {target_levels_1[1]} with a confidence of {confidence_level_1}."
    "Among those, the one that maximizes\n"
    "the secondary objective (here, recall, passed in `best_predict_param_choice`) is: "
    f"{bcc_1.best_predict_param:.3f}.\n"
)

Out:

Scenario 1 - Multiple risks : 23 thresholds found that guarantee a precision of at least 0.75
and a recall of at least 0.7 with a confidence of 0.9.Among those, the one that maximizes
the secondary objective (here, recall, passed in `best_predict_param_choice`) is: 0.500.

# Scenario 2:
target_levels_2 = [0.85, 0.8]
confidence_level_2 = 0.9

# Cas mono risk
bcc_precision_2 = BinaryClassificationController(
    predict_function=clf.predict_proba,
    risk="precision",
    target_level=target_levels_2[0],
    confidence_level=confidence_level_2,
    best_predict_param_choice="auto",
)
bcc_precision_2.calibrate(X_calib, y_calib)

bcc_recall_2 = BinaryClassificationController(
    predict_function=clf.predict_proba,
    risk="recall",
    target_level=target_levels_2[1],
    confidence_level=confidence_level_2,
    best_predict_param_choice="auto",
)
bcc_recall_2.calibrate(X_calib, y_calib)

# Cas multi risk
bcc_2 = BinaryClassificationController(
    predict_function=clf.predict_proba,
    risk=["precision", "recall"],
    target_level=target_levels_2,
    confidence_level=confidence_level_2,
    best_predict_param_choice="recall",
)
with warnings.catch_warnings(record=True) as w:
    warnings.simplefilter("always")  # Capture all warnings
    bcc_2.calibrate(X_calib, y_calib)

    if w:  # If any warnings were raised
        print(f"Scenario 2 - Multiple risks : {w[0].message}")

Out:

Scenario 2 - Multiple risks : No predict parameters were found to control the risk at the given target and confidence levels. Try using a larger calibration set or a better model or less strict target and confidence levels.

In the plot below, we visualize how the threshold values impact precision and recall, and what thresholds have been computed as statistically guaranteed.

proba_positive_class = clf.predict_proba(X_calib)[:, 1]
scenarios = [
    {
        "name": "Scenario 1 - Mono risk",
        "bcc": [bcc_precision_1, bcc_recall_1],
        "target_levels": [target_levels_1[0], target_levels_1[1]],
    },
    {"name": "Scenario 1 - Multi risk", "bcc": bcc_1, "target_levels": target_levels_1},
    {
        "name": "Scenario 2 - Mono risk",
        "bcc": [bcc_precision_2, bcc_recall_2],
        "target_levels": [target_levels_2[0], target_levels_2[1]],
    },
    {"name": "Scenario 2 - Multi risk", "bcc": bcc_2, "target_levels": target_levels_2},
]

fig, axes = plt.subplots(2, 2, figsize=(16, 12), sharey=True)
axes = axes.flatten()

for ax, scenario in zip(axes, scenarios):
    if isinstance(scenario["bcc"], list):
        bcc_precision, bcc_recall = scenario["bcc"]
        target_precision, target_recall = scenario["target_levels"]
        tested_thresholds = bcc_precision._predict_params
        bccs = {"precision": bcc_precision, "recall": bcc_recall}
    else:
        bcc = scenario["bcc"]
        target_precision, target_recall = scenario["target_levels"]
        tested_thresholds = bcc._predict_params
        bccs = {"precision": bcc, "recall": bcc}

    metrics = {
        "precision": np.array(
            [
                precision_score(y_calib, (proba_positive_class >= t).astype(int))
                for t in tested_thresholds
            ]
        ),
        "recall": np.array(
            [
                recall_score(y_calib, (proba_positive_class >= t).astype(int))
                for t in tested_thresholds
            ]
        ),
    }

    valid_indices = {}
    best_indices = {}
    for key, controller in bccs.items():
        valid = controller.valid_predict_params
        if valid is None:
            valid = []
        valid = np.array(valid).tolist()
        valid_indices[key] = np.array([t in valid for t in tested_thresholds])
        best_indices[key] = (
            np.where(tested_thresholds == controller.best_predict_param)[0][0]
            if controller.best_predict_param in tested_thresholds
            else None
        )

    ax.scatter(
        tested_thresholds[valid_indices["precision"]],
        metrics["precision"][valid_indices["precision"]],
        color="tab:green",
        marker="o",
        label="Precision at valid thresholds",
    )
    ax.scatter(
        tested_thresholds[valid_indices["recall"]],
        metrics["recall"][valid_indices["recall"]],
        marker="p",
        facecolors="none",
        edgecolors="tab:green",
        label="Recall at valid thresholds",
    )
    ax.scatter(
        tested_thresholds[~valid_indices["precision"]],
        metrics["precision"][~valid_indices["precision"]],
        color="tab:red",
        marker="o",
        label="Precision at invalid thresholds",
    )
    ax.scatter(
        tested_thresholds[~valid_indices["recall"]],
        metrics["recall"][~valid_indices["recall"]],
        marker="p",
        facecolors="none",
        edgecolors="tab:red",
        label="Recall at invalid thresholds",
    )

    if best_indices["precision"] is not None:
        if scenario["name"] == "Scenario 1 - Multi risk":
            ax.scatter(
                tested_thresholds[best_indices["precision"]],
                metrics["precision"][best_indices["precision"]],
                color="tab:green",
                marker="*",
                edgecolors="k",
                s=200,
                label="Multi risk best threshold",
            )
        else:
            ax.scatter(
                tested_thresholds[best_indices["precision"]],
                metrics["precision"][best_indices["precision"]],
                color="tab:green",
                marker="*",
                edgecolors="k",
                s=200,
                label="Precision best threshold",
            )
    if best_indices["recall"] is not None:
        if scenario["name"] == "Scenario 1 - Multi risk":
            ax.scatter(
                tested_thresholds[best_indices["recall"]],
                metrics["recall"][best_indices["recall"]],
                color="tab:green",
                marker="*",
                edgecolors="k",
                s=200,
            )
        else:
            ax.scatter(
                tested_thresholds[best_indices["recall"]],
                metrics["recall"][best_indices["recall"]],
                color="tab:blue",
                marker="*",
                edgecolors="k",
                s=200,
                label="Recall best threshold",
            )

    ax.axhline(target_precision, color="tab:gray", linestyle="--")
    ax.text(
        0.8,
        target_precision + 0.02,
        "Target precision",
        color="tab:gray",
        fontstyle="italic",
        fontsize=14,
    )
    ax.axhline(target_recall, color="tab:blue", linestyle=":")
    ax.text(
        0.4,
        target_recall - 0.045,
        "Target recall",
        color="tab:blue",
        fontstyle="italic",
        fontsize=14,
    )
    ax.tick_params(axis="x", labelsize=16)
    ax.tick_params(axis="y", labelsize=16)
    ax.set_xlabel("Threshold", fontsize=16)
    ax.set_ylabel("Performance metric value", fontsize=16)
    ax.set_title(scenario["name"], fontsize=16)
    ax.legend(fontsize=16)
plt.suptitle("Precision and recall by threshold for all scenarios", fontsize=22)
plt.tight_layout(rect=[0, 0, 1, 0.95])
plt.show()

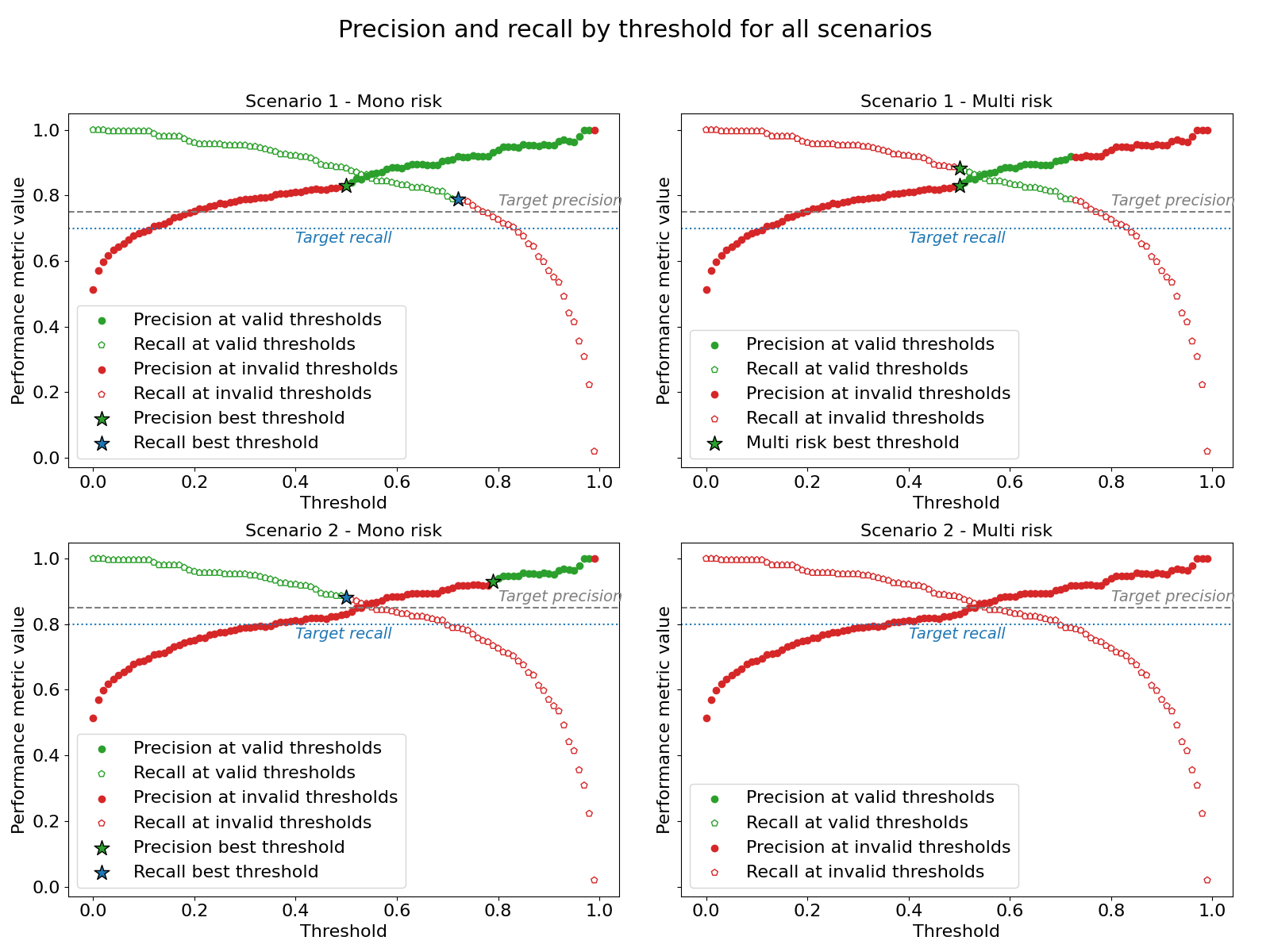

Precision and recall by threshold for all scenarios, Scenario 1 - Mono risk, Scenario 1 - Multi risk, Scenario 2 - Mono risk, Scenario 2 - Multi risk

In scenario 1, both the mono-risk controllers and the multi-risk controller found valid thresholds that satisfy the precision and recall targets individually and jointly. The jointly valid thresholds found by the multi-risk controller are shown as green markers in the plot. In scenario 2, although valid thresholds are found individually for precision and recall by the mono-risk controllers, the multi-risk controller cannot find any threshold that satisfies both targets simultaneously.

# For Scenario 1 - Multi-risk only:
# Besides computing a set of valid thresholds,
# `BinaryClassificationController` also outputs the "best"
# one, which is the valid threshold that maximizes a secondary objective
# (recall here).
#

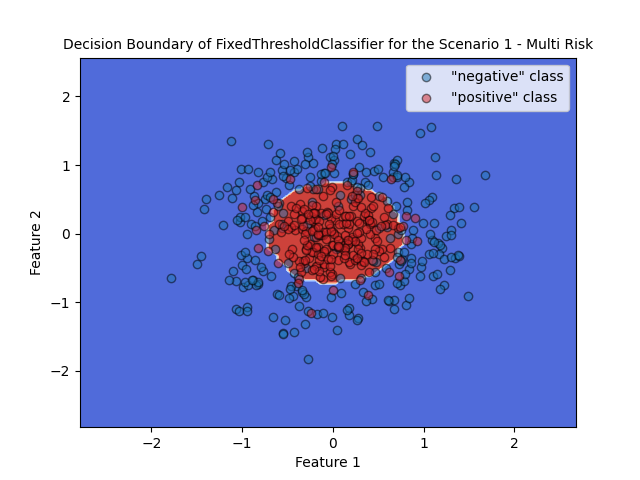

# After obtaining the best threshold, we can use the `predict` function of
# `BinaryClassificationController` for future predictions,
# or use scikit-learn's `FixedThresholdClassifier` as a wrapper to benefit
# from functionalities like easily plotting the decision boundary as seen below.

y_pred = bcc_1.predict(X_test)

clf_threshold = FixedThresholdClassifier(clf, threshold=bcc_1.best_predict_param)
clf_threshold.fit(X_train, y_train)
# .fit necessary for plotting, alternatively you can use sklearn.frozen.FrozenEstimator

disp = DecisionBoundaryDisplay.from_estimator(
    clf_threshold, X_test, response_method="predict", cmap=plt.cm.coolwarm
)

plt.scatter(
    X_test[y_test == 0, 0],
    X_test[y_test == 0, 1],
    edgecolors="k",
    c="tab:blue",
    alpha=0.5,
    label='"negative" class',
)
plt.scatter(
    X_test[y_test == 1, 0],
    X_test[y_test == 1, 1],
    edgecolors="k",
    c="tab:red",
    alpha=0.5,
    label='"positive" class',
)
plt.title(
    "Decision Boundary of FixedThresholdClassifier for the Scenario 1 - Multi Risk",
    fontsize=10,
)
plt.xlabel("Feature 1")
plt.ylabel("Feature 2")
plt.legend()
plt.show()

	hidden_layer_sizes hidden_layer_sizes: array-like of shape(n_layers - 2,), default=(100,) The ith element represents the number of neurons in the ith hidden layer.	(100,)
	activation activation: {'identity', 'logistic', 'tanh', 'relu'}, default='relu' Activation function for the hidden layer. - 'identity', no-op activation, useful to implement linear bottleneck, returns f(x) = x - 'logistic', the logistic sigmoid function, returns f(x) = 1 / (1 + exp(-x)). - 'tanh', the hyperbolic tan function, returns f(x) = tanh(x). - 'relu', the rectified linear unit function, returns f(x) = max(0, x)	'relu'
	solver solver: {'lbfgs', 'sgd', 'adam'}, default='adam' The solver for weight optimization. - 'lbfgs' is an optimizer in the family of quasi-Newton methods. - 'sgd' refers to stochastic gradient descent. - 'adam' refers to a stochastic gradient-based optimizer proposed by Kingma, Diederik, and Jimmy Ba For a comparison between Adam optimizer and SGD, see :ref:`sphx_glr_auto_examples_neural_networks_plot_mlp_training_curves.py`. Note: The default solver 'adam' works pretty well on relatively large datasets (with thousands of training samples or more) in terms of both training time and validation score. For small datasets, however, 'lbfgs' can converge faster and perform better.	'adam'
	alpha alpha: float, default=0.0001 Strength of the L2 regularization term. The L2 regularization term is divided by the sample size when added to the loss. For an example usage and visualization of varying regularization, see :ref:`sphx_glr_auto_examples_neural_networks_plot_mlp_alpha.py`.	0.0001
	batch_size batch_size: int, default='auto' Size of minibatches for stochastic optimizers. If the solver is 'lbfgs', the classifier will not use minibatch. When set to "auto", `batch_size=min(200, n_samples)`.	'auto'
	learning_rate learning_rate: {'constant', 'invscaling', 'adaptive'}, default='constant' Learning rate schedule for weight updates. - 'constant' is a constant learning rate given by 'learning_rate_init'. - 'invscaling' gradually decreases the learning rate at each time step 't' using an inverse scaling exponent of 'power_t'. effective_learning_rate = learning_rate_init / pow(t, power_t) - 'adaptive' keeps the learning rate constant to 'learning_rate_init' as long as training loss keeps decreasing. Each time two consecutive epochs fail to decrease training loss by at least tol, or fail to increase validation score by at least tol if 'early_stopping' is on, the current learning rate is divided by 5. Only used when ``solver='sgd'``.	'constant'
	learning_rate_init learning_rate_init: float, default=0.001 The initial learning rate used. It controls the step-size in updating the weights. Only used when solver='sgd' or 'adam'.	0.001
	power_t power_t: float, default=0.5 The exponent for inverse scaling learning rate. It is used in updating effective learning rate when the learning_rate is set to 'invscaling'. Only used when solver='sgd'.	0.5
	max_iter max_iter: int, default=200 Maximum number of iterations. The solver iterates until convergence (determined by 'tol') or this number of iterations. For stochastic solvers ('sgd', 'adam'), note that this determines the number of epochs (how many times each data point will be used), not the number of gradient steps.	150
	shuffle shuffle: bool, default=True Whether to shuffle samples in each iteration. Only used when solver='sgd' or 'adam'.	True
	random_state random_state: int, RandomState instance, default=None Determines random number generation for weights and bias initialization, train-test split if early stopping is used, and batch sampling when solver='sgd' or 'adam'. Pass an int for reproducible results across multiple function calls. See :term:`Glossary `.	1
	tol tol: float, default=1e-4 Tolerance for the optimization. When the loss or score is not improving by at least ``tol`` for ``n_iter_no_change`` consecutive iterations, unless ``learning_rate`` is set to 'adaptive', convergence is considered to be reached and training stops.	0.0001
	verbose verbose: bool, default=False Whether to print progress messages to stdout.	False
	warm_start warm_start: bool, default=False When set to True, reuse the solution of the previous call to fit as initialization, otherwise, just erase the previous solution. See :term:`the Glossary `.	False
	momentum momentum: float, default=0.9 Momentum for gradient descent update. Should be between 0 and 1. Only used when solver='sgd'.	0.9
	nesterovs_momentum nesterovs_momentum: bool, default=True Whether to use Nesterov's momentum. Only used when solver='sgd' and momentum > 0.	True
	early_stopping early_stopping: bool, default=False Whether to use early stopping to terminate training when validation score is not improving. If set to True, it will automatically set aside ``validation_fraction`` of training data as validation and terminate training when validation score is not improving by at least ``tol`` for ``n_iter_no_change`` consecutive epochs. The split is stratified, except in a multilabel setting. If early stopping is False, then the training stops when the training loss does not improve by more than ``tol`` for ``n_iter_no_change`` consecutive passes over the training set. Only effective when solver='sgd' or 'adam'.	False
	validation_fraction validation_fraction: float, default=0.1 The proportion of training data to set aside as validation set for early stopping. Must be between 0 and 1. Only used if early_stopping is True.	0.1
	beta_1 beta_1: float, default=0.9 Exponential decay rate for estimates of first moment vector in adam, should be in [0, 1). Only used when solver='adam'.	0.9
	beta_2 beta_2: float, default=0.999 Exponential decay rate for estimates of second moment vector in adam, should be in [0, 1). Only used when solver='adam'.	0.999
	epsilon epsilon: float, default=1e-8 Value for numerical stability in adam. Only used when solver='adam'.	1e-08
	n_iter_no_change n_iter_no_change: int, default=10 Maximum number of epochs to not meet ``tol`` improvement. Only effective when solver='sgd' or 'adam'. .. versionadded:: 0.20	10
	max_fun max_fun: int, default=15000 Only used when solver='lbfgs'. Maximum number of loss function calls. The solver iterates until convergence (determined by 'tol'), number of iterations reaches max_iter, or this number of loss function calls. Note that number of loss function calls will be greater than or equal to the number of iterations for the `MLPClassifier`. .. versionadded:: 0.22	15000
