Comparing FWER methods for risk control in binary classification¶

This example compares how different family-wise error rate (FWER) control strategies affect the set of statistically valid thresholds when controlling a risk in binary classification.

Risk control consists in selecting a threshold on predicted probabilities so that a chosen risk (e.g., 1-recall) is guaranteed to stay below a target level with high probability on unseen data. The guarantee is obtained using a calibration dataset and a multiple testing correction across candidate thresholds.

We compare three FWER procedures:

"bonferroni": a classical Bonferroni correction valid under any risk structure and parameter space, but generally conservative.
"fixed_sequence": Fixed-Sequence Testing (FST), which exploits monotonicity of the risk when available to lead to less conservative thresholds.
"bonferroni_holm": a sequential graphical testing method applying the Bonferroni-Holm procedure which is valid under any risk structure and parameter space, but generally more powerful than the classical Bonferroni correction.

Although not used in this comparison, note that the Split Fixed Sequence Testing (SFST) FWER procedure is also implemented under the name "split_fixed_sequence". SFST learns an optimal testing order from independent data and then applies the classical FST procedure using this learned order. For a practical illustration, please refer to the risk control example gallery showcasing the use case of the SFST FWER control method.

The applicability of each FWER method depends on the structure of the problem. The table below summarizes the conditions under which each procedure can be applied (e.g., monotonic or non-monotonic risks, multiple risks, multiple parameters).

The "Conservatism level" column provides a qualitative indication of how restrictive the method is: more conservative procedures tend to select smaller sets of valid parameters and may lead to solutions achieving a risk well below the target level in order to guarantee validity.

Note that Bonferroni is the default FWER control method due to its simplicity and broad applicability across problem settings.

+-----------------+------------------------+--------------------+------------------------+----------------+---------------------+ | Method | Conservatism level | Monotonic risk | Non-monotonic risk | Multi-risk | Multi-parameter | +-----------------+------------------------+--------------------+------------------------+----------------+---------------------+ | Bonferroni | ➕➕➕➕ | ✅ | ✅ | ✅ | ✅ | +-----------------+------------------------+--------------------+------------------------+----------------+---------------------+ | Bonferroni-Holm | ➕➕➕ | ✅ | ✅ | ✅ | ✅ | +-----------------+------------------------+--------------------+------------------------+----------------+---------------------+ | FST | ➕ | ✅ | ❌ | ❌ | ❌ | +-----------------+------------------------+--------------------+------------------------+----------------+---------------------+ | Split FST | ➕➕ | ✅ | ✅ | ✅ | ✅ | +-----------------+------------------------+--------------------+------------------------+----------------+---------------------+

Here we control 1-recall, which is monotonic with respect to the decision threshold. We therefore expect FST to be the least conservative, Bonferroni the most conservative, and Bonferroni-Holm to lie in between.

Using the same classifier, calibration set, and target recall, we:

compute valid thresholds for each method,
compare their selected best thresholds,
visualize agreement and differences between procedures.

# sphinx_gallery_thumbnail_number = 2

import matplotlib.pyplot as plt
import numpy as np
from sklearn.datasets import make_circles
from sklearn.metrics import recall_score
from sklearn.neural_network import MLPClassifier

from mapie.risk_control import BinaryClassificationController
from mapie.utils import train_conformalize_test_split

RANDOM_STATE = 42

First, load the dataset and then split it into training, calibration (for conformalization), and test sets.

X, y = make_circles(n_samples=5000, noise=0.3, factor=0.3, random_state=RANDOM_STATE)
(X_train, X_calib, X_test, y_train, y_calib, y_test) = train_conformalize_test_split(
    X,
    y,
    train_size=0.7,
    conformalize_size=0.1,
    test_size=0.2,
    random_state=RANDOM_STATE,
)

# Plot the three datasets to visualize the distribution of the two classes.
fig, axes = plt.subplots(1, 3, figsize=(18, 6))
titles = ["Training Data", "Calibration Data", "Test Data"]
datasets = [(X_train, y_train), (X_calib, y_calib), (X_test, y_test)]

for i, (ax, (X_data, y_data), title) in enumerate(zip(axes, datasets, titles)):
    ax.scatter(
        X_data[y_data == 0, 0],
        X_data[y_data == 0, 1],
        edgecolors="k",
        c="tab:blue",
        label='"negative" class',
        alpha=0.5,
    )
    ax.scatter(
        X_data[y_data == 1, 0],
        X_data[y_data == 1, 1],
        edgecolors="k",
        c="tab:red",
        label='"positive" class',
        alpha=0.5,
    )
    ax.set_title(title, fontsize=18)
    ax.set_xlabel("Feature 1", fontsize=16)
    ax.tick_params(labelsize=14)

    if i == 0:
        ax.set_ylabel("Feature 2", fontsize=16)
    else:
        ax.set_ylabel("")
        ax.set_yticks([])

handles, labels = axes[0].get_legend_handles_labels()
fig.legend(
    handles,
    labels,
    loc="lower center",
    bbox_to_anchor=(0.5, -0.01),
    ncol=2,
    fontsize=16,
)

plt.suptitle("Visualization of Train, Calibration, and Test Sets", fontsize=22)
plt.tight_layout(rect=[0, 0.05, 1, 0.95])
plt.show()

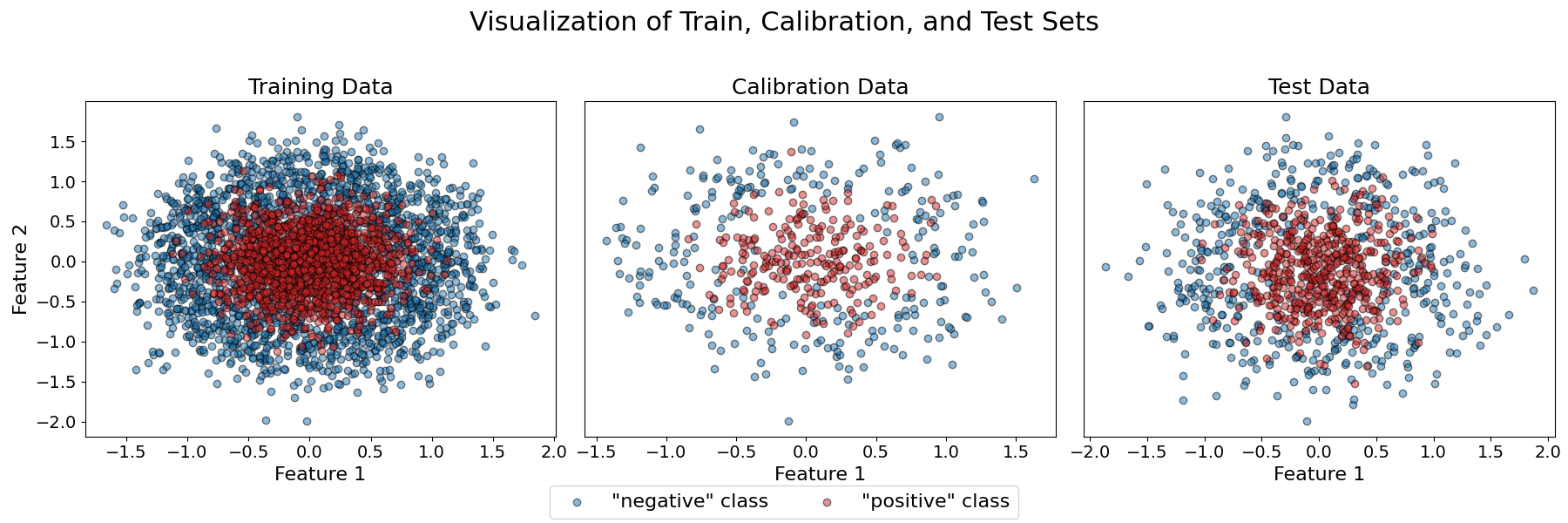

Visualization of Train, Calibration, and Test Sets, Training Data, Calibration Data, Test Data

Second, fit a Multi-layer Perceptron classifier on the training data.

clf = MLPClassifier(max_iter=150, random_state=RANDOM_STATE)
clf.fit(X_train, y_train)

MLPClassifier(max_iter=150, random_state=42)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Next, we initialize BinaryClassificationController with the estimator probability function clf.predict_proba, the "recall" performance metric, a target recall level, and a confidence level. We then calibrate it to compute thresholds that are statistically guaranteed to satisfy the target metric on unseen data using different FWER control methods, specified via the fwer_method parameter of the controller:

"bonferroni": classical Bonerroni correction,
"fixed_sequence": Fixed-Sequence Testing (FST) procedure,
"bonferroni_holm": sequential graphical testing method applying the Bonferroni-Holm procedure.

The FST procedure requires the risk to be monotonic with respect to the threshold. This holds for recall but not for precision, which is generally non-monotonic; therefore FST cannot be used for controlling "precision".

target_recall = 0.8
confidence_level = 0.7
bcc_bonferroni = BinaryClassificationController(
    predict_function=clf.predict_proba,
    risk="recall",
    target_level=target_recall,
    confidence_level=confidence_level,
    list_predict_params=np.linspace(0.01, 0.99, 100),
    fwer_method="bonferroni",
)

bcc_fst = BinaryClassificationController(
    predict_function=clf.predict_proba,
    risk="recall",
    target_level=target_recall,
    confidence_level=confidence_level,
    list_predict_params=np.linspace(0.01, 0.99, 100),
    fwer_method="fixed_sequence",
)

bcc_bonferroni_holm = BinaryClassificationController(
    predict_function=clf.predict_proba,
    risk="recall",
    target_level=target_recall,
    confidence_level=confidence_level,
    list_predict_params=np.linspace(0.01, 0.99, 100),
    fwer_method="bonferroni_holm",
)

bcc_bonferroni.calibrate(X_calib, y_calib)
bcc_fst.calibrate(X_calib, y_calib)
bcc_bonferroni_holm.calibrate(X_calib, y_calib)

print(
    f"Thresholds found that guarantee a recall of at least {target_recall} with a confidence of {confidence_level}:\n"
    f"- Bonferroni correction: {len(bcc_bonferroni.valid_predict_params)} valid thresholds. The best threshold maximizing precision is: {bcc_bonferroni.best_predict_param:.3f}\n"
    f"- FST procedure: {len(bcc_fst.valid_predict_params)} valid thresholds. The best threshold maximizing precision is: {bcc_fst.best_predict_param:.3f}\n"
    f"- Bonferroni-Holm method: {len(bcc_bonferroni_holm.valid_predict_params)} valid thresholds. The best threshold maximizing precision is: {bcc_bonferroni_holm.best_predict_param:.3f}\n"
)

Out:

Thresholds found that guarantee a recall of at least 0.8 with a confidence of 0.7:
- Bonferroni correction: 39 valid thresholds. The best threshold maximizing precision is: 0.386
- FST procedure: 54 valid thresholds. The best threshold maximizing precision is: 0.535
- Bonferroni-Holm method: 40 valid thresholds. The best threshold maximizing precision is: 0.396

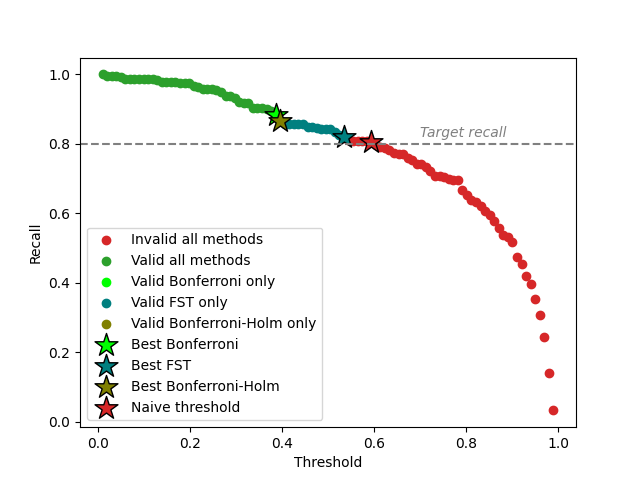

The plot below shows how recall varies with the decision threshold and which thresholds are statistically valid under each FWER control method. Colors indicate agreement or disagreement between methods, and stars mark the best valid threshold selected by each procedure as well as the naive threshold.

proba_positive_class = clf.predict_proba(X_calib)[:, 1]

tested_thresholds = bcc_bonferroni._predict_params
recalls = np.full(len(tested_thresholds), np.inf)
for i, threshold in enumerate(tested_thresholds):
    y_pred = (proba_positive_class >= threshold).astype(int)
    recalls[i] = recall_score(y_calib, y_pred)

naive_threshold_index = np.argmin(
    np.where(recalls >= target_recall, recalls - target_recall, np.inf)
)

valid_index_bonferroni = np.array(
    [t in bcc_bonferroni.valid_predict_params for t in tested_thresholds]
)
valid_index_fst = np.array(
    [t in bcc_fst.valid_predict_params for t in tested_thresholds]
)
valid_index_bonferroni_holm = np.array(
    [t in bcc_bonferroni_holm.valid_predict_params for t in tested_thresholds]
)
best_thr_index_bonferroni = np.where(
    tested_thresholds == bcc_bonferroni.best_predict_param
)[0][0]
best_thr_index_fst = np.where(tested_thresholds == bcc_fst.best_predict_param)[0][0]
best_thr_index_bonferroni_holm = np.where(
    tested_thresholds == bcc_bonferroni_holm.best_predict_param
)[0][0]

# plotting the valid and invalid thresholds for each method, and the best valid threshold for each method
valid_all = valid_index_bonferroni & valid_index_fst & valid_index_bonferroni_holm
invalid_all = ~valid_index_bonferroni & ~valid_index_fst & ~valid_index_bonferroni_holm

only_bonf = valid_index_bonferroni & ~valid_all
only_fst = valid_index_fst & ~valid_all
only_holm = valid_index_bonferroni_holm & ~valid_all

plt.figure()

plt.scatter(
    tested_thresholds[invalid_all],
    recalls[invalid_all],
    c="tab:red",
    label="Invalid all methods",
)
plt.scatter(
    tested_thresholds[valid_all],
    recalls[valid_all],
    c="tab:green",
    label="Valid all methods",
)
plt.scatter(
    tested_thresholds[only_bonf],
    recalls[only_bonf],
    c="lime",
    label="Valid Bonferroni only",
)
plt.scatter(
    tested_thresholds[only_fst],
    recalls[only_fst],
    c="teal",
    label="Valid FST only",
)
plt.scatter(
    tested_thresholds[only_holm],
    recalls[only_holm],
    c="olive",
    label="Valid Bonferroni-Holm only",
)
plt.scatter(
    tested_thresholds[best_thr_index_bonferroni],
    recalls[best_thr_index_bonferroni],
    c="lime",
    marker="*",
    edgecolors="k",
    s=300,
    label="Best Bonferroni",
)
plt.scatter(
    tested_thresholds[best_thr_index_fst],
    recalls[best_thr_index_fst],
    c="teal",
    marker="*",
    edgecolors="k",
    s=300,
    label="Best FST",
)
plt.scatter(
    tested_thresholds[best_thr_index_bonferroni_holm],
    recalls[best_thr_index_bonferroni_holm],
    c="olive",
    marker="*",
    edgecolors="k",
    s=300,
    label="Best Bonferroni-Holm",
)
plt.scatter(
    tested_thresholds[naive_threshold_index],
    recalls[naive_threshold_index],
    c="tab:red",
    marker="*",
    edgecolors="k",
    s=300,
    label="Naive threshold",
)
plt.axhline(target_recall, color="gray", linestyle="--")
plt.text(
    0.7,
    target_recall + 0.02,
    "Target recall",
    color="gray",
    fontstyle="italic",
)

plt.xlabel("Threshold")
plt.ylabel("Recall")
plt.legend()
plt.show()

plot fwer method comparison for recall guarantees

Finally, we compare test-set recall obtained with the naive threshold and with the best valid threshold selected by each FWER method, alongside their calibration-set recalls.

proba_positive_class_test = clf.predict_proba(X_test)[:, 1]
y_pred_naive = (
    proba_positive_class_test >= tested_thresholds[naive_threshold_index]
).astype(int)
print(
    "With the naive threshold, the recall is:\n "
    f"- {recalls[naive_threshold_index]:.3f} on the calibration set\n "
    f"- {recall_score(y_test, y_pred_naive):.3f} on the test set."
)

print(
    "\n\nWith Bonferroni correction, the recall is:\n "
    f"- {recalls[best_thr_index_bonferroni]:.3f} on the calibration set\n "
    f"- {recall_score(y_test, bcc_bonferroni.predict(X_test)):.3f} on the test set."
)

print(
    "\n\nWith FST procedure, the recall is:\n "
    f"- {recalls[best_thr_index_fst]:.3f} on the calibration set\n "
    f"- {recall_score(y_test, bcc_fst.predict(X_test)):.3f} on the test set."
)

print(
    "\n\nWith Bonferroni-Holm, the recall is:\n "
    f"- {recalls[best_thr_index_bonferroni_holm]:.3f} on the calibration set\n "
    f"- {recall_score(y_test, bcc_bonferroni_holm.predict(X_test)):.3f} on the test set."
)

Out:

With the naive threshold, the recall is:
 - 0.804 on the calibration set
 - 0.806 on the test set.


With Bonferroni correction, the recall is:
 - 0.883 on the calibration set
 - 0.883 on the test set.


With FST procedure, the recall is:
 - 0.821 on the calibration set
 - 0.830 on the test set.


With Bonferroni-Holm, the recall is:
 - 0.867 on the calibration set
 - 0.881 on the test set.

Risk control provides statistical guarantees on unseen data, unlike naive threshold selection. Although the naive threshold may meet the target recall on this test set, it does not come with a confidence guarantee. In contrast, thresholds selected via risk control are valid with the prescribed confidence level.

As expected, Bonferroni is the most conservative (fewest valid thresholds), FST is the least conservative when its assumptions hold (largest valid set), and Bonferroni-Holm lies in between, offering a compromise between power and generality.

Total running time of the script: ( 0 minutes 1.496 seconds)

Download Python source code: plot_fwer_method_comparison_for_recall_guarantees.py

Download Jupyter notebook: plot_fwer_method_comparison_for_recall_guarantees.ipynb

Gallery generated by mkdocs-gallery

	hidden_layer_sizes hidden_layer_sizes: array-like of shape(n_layers - 2,), default=(100,) The ith element represents the number of neurons in the ith hidden layer.	(100,)
	activation activation: {'identity', 'logistic', 'tanh', 'relu'}, default='relu' Activation function for the hidden layer. - 'identity', no-op activation, useful to implement linear bottleneck, returns f(x) = x - 'logistic', the logistic sigmoid function, returns f(x) = 1 / (1 + exp(-x)). - 'tanh', the hyperbolic tan function, returns f(x) = tanh(x). - 'relu', the rectified linear unit function, returns f(x) = max(0, x)	'relu'
	solver solver: {'lbfgs', 'sgd', 'adam'}, default='adam' The solver for weight optimization. - 'lbfgs' is an optimizer in the family of quasi-Newton methods. - 'sgd' refers to stochastic gradient descent. - 'adam' refers to a stochastic gradient-based optimizer proposed by Kingma, Diederik, and Jimmy Ba For a comparison between Adam optimizer and SGD, see :ref:`sphx_glr_auto_examples_neural_networks_plot_mlp_training_curves.py`. Note: The default solver 'adam' works pretty well on relatively large datasets (with thousands of training samples or more) in terms of both training time and validation score. For small datasets, however, 'lbfgs' can converge faster and perform better.	'adam'
	alpha alpha: float, default=0.0001 Strength of the L2 regularization term. The L2 regularization term is divided by the sample size when added to the loss. For an example usage and visualization of varying regularization, see :ref:`sphx_glr_auto_examples_neural_networks_plot_mlp_alpha.py`.	0.0001
	batch_size batch_size: int, default='auto' Size of minibatches for stochastic optimizers. If the solver is 'lbfgs', the classifier will not use minibatch. When set to "auto", `batch_size=min(200, n_samples)`.	'auto'
	learning_rate learning_rate: {'constant', 'invscaling', 'adaptive'}, default='constant' Learning rate schedule for weight updates. - 'constant' is a constant learning rate given by 'learning_rate_init'. - 'invscaling' gradually decreases the learning rate at each time step 't' using an inverse scaling exponent of 'power_t'. effective_learning_rate = learning_rate_init / pow(t, power_t) - 'adaptive' keeps the learning rate constant to 'learning_rate_init' as long as training loss keeps decreasing. Each time two consecutive epochs fail to decrease training loss by at least tol, or fail to increase validation score by at least tol if 'early_stopping' is on, the current learning rate is divided by 5. Only used when ``solver='sgd'``.	'constant'
	learning_rate_init learning_rate_init: float, default=0.001 The initial learning rate used. It controls the step-size in updating the weights. Only used when solver='sgd' or 'adam'.	0.001
	power_t power_t: float, default=0.5 The exponent for inverse scaling learning rate. It is used in updating effective learning rate when the learning_rate is set to 'invscaling'. Only used when solver='sgd'.	0.5
	max_iter max_iter: int, default=200 Maximum number of iterations. The solver iterates until convergence (determined by 'tol') or this number of iterations. For stochastic solvers ('sgd', 'adam'), note that this determines the number of epochs (how many times each data point will be used), not the number of gradient steps.	150
	shuffle shuffle: bool, default=True Whether to shuffle samples in each iteration. Only used when solver='sgd' or 'adam'.	True
	random_state random_state: int, RandomState instance, default=None Determines random number generation for weights and bias initialization, train-test split if early stopping is used, and batch sampling when solver='sgd' or 'adam'. Pass an int for reproducible results across multiple function calls. See :term:`Glossary `.	42
	tol tol: float, default=1e-4 Tolerance for the optimization. When the loss or score is not improving by at least ``tol`` for ``n_iter_no_change`` consecutive iterations, unless ``learning_rate`` is set to 'adaptive', convergence is considered to be reached and training stops.	0.0001
	verbose verbose: bool, default=False Whether to print progress messages to stdout.	False
	warm_start warm_start: bool, default=False When set to True, reuse the solution of the previous call to fit as initialization, otherwise, just erase the previous solution. See :term:`the Glossary `.	False
	momentum momentum: float, default=0.9 Momentum for gradient descent update. Should be between 0 and 1. Only used when solver='sgd'.	0.9
	nesterovs_momentum nesterovs_momentum: bool, default=True Whether to use Nesterov's momentum. Only used when solver='sgd' and momentum > 0.	True
	early_stopping early_stopping: bool, default=False Whether to use early stopping to terminate training when validation score is not improving. If set to True, it will automatically set aside ``validation_fraction`` of training data as validation and terminate training when validation score is not improving by at least ``tol`` for ``n_iter_no_change`` consecutive epochs. The split is stratified, except in a multilabel setting. If early stopping is False, then the training stops when the training loss does not improve by more than ``tol`` for ``n_iter_no_change`` consecutive passes over the training set. Only effective when solver='sgd' or 'adam'.	False
	validation_fraction validation_fraction: float, default=0.1 The proportion of training data to set aside as validation set for early stopping. Must be between 0 and 1. Only used if early_stopping is True.	0.1
	beta_1 beta_1: float, default=0.9 Exponential decay rate for estimates of first moment vector in adam, should be in [0, 1). Only used when solver='adam'.	0.9
	beta_2 beta_2: float, default=0.999 Exponential decay rate for estimates of second moment vector in adam, should be in [0, 1). Only used when solver='adam'.	0.999
	epsilon epsilon: float, default=1e-8 Value for numerical stability in adam. Only used when solver='adam'.	1e-08
	n_iter_no_change n_iter_no_change: int, default=10 Maximum number of epochs to not meet ``tol`` improvement. Only effective when solver='sgd' or 'adam'. .. versionadded:: 0.20	10
	max_fun max_fun: int, default=15000 Only used when solver='lbfgs'. Maximum number of loss function calls. The solver iterates until convergence (determined by 'tol'), number of iterations reaches max_iter, or this number of loss function calls. Note that number of loss function calls will be greater than or equal to the number of iterations for the `MLPClassifier`. .. versionadded:: 0.22	15000
