Precision control for a binary classifier¶

In this example, we explain how to do risk control for binary classification with MAPIE.

# sphinx_gallery_thumbnail_number = 2

import matplotlib.pyplot as plt
import numpy as np
from sklearn.datasets import make_circles
from sklearn.inspection import DecisionBoundaryDisplay
from sklearn.metrics import precision_score
from sklearn.model_selection import FixedThresholdClassifier
from sklearn.neural_network import MLPClassifier

from mapie.risk_control import BinaryClassificationController
from mapie.utils import train_conformalize_test_split

RANDOM_STATE = 42

First, load the dataset and then split it into training, calibration (for conformalization), and test sets.

X, y = make_circles(n_samples=5000, noise=0.3, factor=0.3, random_state=RANDOM_STATE)
(X_train, X_calib, X_test, y_train, y_calib, y_test) = train_conformalize_test_split(
    X,
    y,
    train_size=0.7,
    conformalize_size=0.1,
    test_size=0.2,
    random_state=RANDOM_STATE,
)

# Plot the three datasets to visualize the distribution of the two classes.
fig, axes = plt.subplots(1, 3, figsize=(18, 6))
titles = ["Training Data", "Calibration Data", "Test Data"]
datasets = [(X_train, y_train), (X_calib, y_calib), (X_test, y_test)]

for i, (ax, (X_data, y_data), title) in enumerate(zip(axes, datasets, titles)):
    ax.scatter(
        X_data[y_data == 0, 0],
        X_data[y_data == 0, 1],
        edgecolors="k",
        c="tab:blue",
        label='"negative" class',
        alpha=0.5,
    )
    ax.scatter(
        X_data[y_data == 1, 0],
        X_data[y_data == 1, 1],
        edgecolors="k",
        c="tab:red",
        label='"positive" class',
        alpha=0.5,
    )
    ax.set_title(title, fontsize=18)
    ax.set_xlabel("Feature 1", fontsize=16)
    ax.tick_params(labelsize=14)

    if i == 0:
        ax.set_ylabel("Feature 2", fontsize=16)
    else:
        ax.set_ylabel("")
        ax.set_yticks([])

handles, labels = axes[0].get_legend_handles_labels()
fig.legend(
    handles,
    labels,
    loc="lower center",
    bbox_to_anchor=(0.5, -0.01),
    ncol=2,
    fontsize=16,
)

plt.suptitle("Visualization of Train, Calibration, and Test Sets", fontsize=22)
plt.tight_layout(rect=[0, 0.05, 1, 0.95])
plt.show()

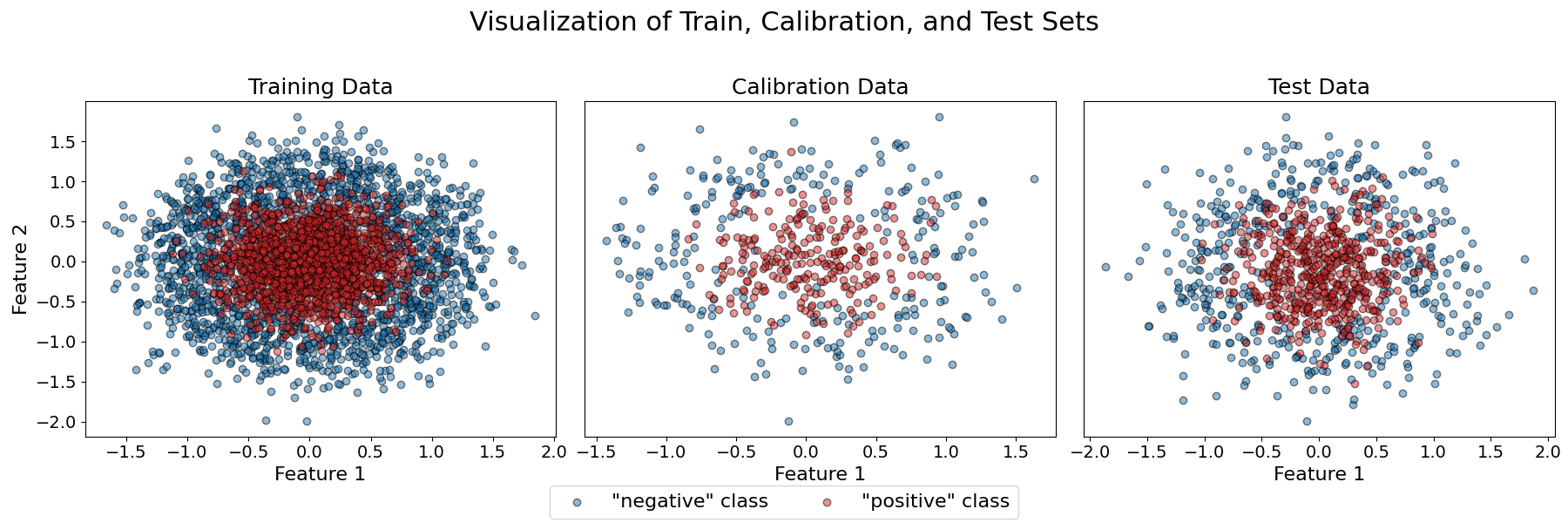

Visualization of Train, Calibration, and Test Sets, Training Data, Calibration Data, Test Data

Second, fit a Multi-layer Perceptron classifier on the training data.

clf = MLPClassifier(max_iter=150, random_state=RANDOM_STATE)
clf.fit(X_train, y_train)

MLPClassifier(max_iter=150, random_state=42)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Next, we initialize a BinaryClassificationController using the probability estimation function from the fitted estimator: clf.predict_proba, a risk or performance metric (here, "precision"), a target risk level, and a confidence level. Then we use the calibration data to compute statistically guaranteed thresholds using a risk control method.

Different risks or performance metrics have been implemented, such as precision and recall, but you can also implement your own custom function using BinaryClassificationRisk and choose your own secondary objective.

target_precision = 0.8
confidence_level = 0.9
bcc = BinaryClassificationController(
    clf.predict_proba,
    "precision",
    target_level=target_precision,
    confidence_level=confidence_level,
)
bcc.calibrate(X_calib, y_calib)

print(
    f"{len(bcc.valid_predict_params)} thresholds found that guarantee a precision of "
    f"at least {target_precision} with a confidence of {confidence_level}.\n"
    "Among those, the one that maximizes the secondary objective (recall here) is: "
    f"{bcc.best_predict_param:.2f}."
)

Out:

49 thresholds found that guarantee a precision of at least 0.8 with a confidence of 0.9.
Among those, the one that maximizes the secondary objective (recall here) is: 0.50.

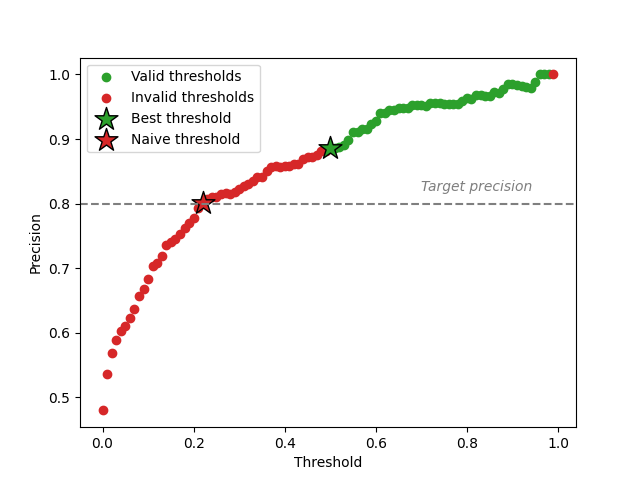

In the plot below, we visualize how the threshold values impact precision, and what thresholds have been computed as statistically guaranteed.

proba_positive_class = clf.predict_proba(X_calib)[:, 1]

tested_thresholds = bcc._predict_params
precisions = np.full(len(tested_thresholds), np.inf)
for i, threshold in enumerate(tested_thresholds):
    y_pred = (proba_positive_class >= threshold).astype(int)
    precisions[i] = precision_score(y_calib, y_pred)

naive_threshold_index = np.argmin(
    np.where(precisions >= target_precision, precisions - target_precision, np.inf)
)

valid_thresholds_indices = np.array(
    [t in bcc.valid_predict_params for t in tested_thresholds]
)
best_threshold_index = np.where(tested_thresholds == bcc.best_predict_param)[0][0]

plt.figure()
plt.scatter(
    tested_thresholds[valid_thresholds_indices],
    precisions[valid_thresholds_indices],
    c="tab:green",
    label="Valid thresholds",
)
plt.scatter(
    tested_thresholds[~valid_thresholds_indices],
    precisions[~valid_thresholds_indices],
    c="tab:red",
    label="Invalid thresholds",
)
plt.scatter(
    tested_thresholds[best_threshold_index],
    precisions[best_threshold_index],
    c="tab:green",
    label="Best threshold",
    marker="*",
    edgecolors="k",
    s=300,
)
plt.scatter(
    tested_thresholds[naive_threshold_index],
    precisions[naive_threshold_index],
    c="tab:red",
    label="Naive threshold",
    marker="*",
    edgecolors="k",
    s=300,
)
plt.axhline(target_precision, color="tab:gray", linestyle="--")
plt.text(
    0.7,
    target_precision + 0.02,
    "Target precision",
    color="tab:gray",
    fontstyle="italic",
)
plt.xlabel("Threshold")
plt.ylabel("Precision")
plt.legend()
plt.show()

proba_positive_class_test = clf.predict_proba(X_test)[:, 1]
y_pred_naive = (
    proba_positive_class_test >= tested_thresholds[naive_threshold_index]
).astype(int)
print(
    "With the naive threshold, the precision is:\n "
    f"- {precisions[naive_threshold_index]:.3f} on the calibration set\n "
    f"- {precision_score(y_test, y_pred_naive):.3f} on the test set."
)

print(
    "\n\nWith risk control, the precision is:\n "
    f"- {precisions[best_threshold_index]:.3f} on the calibration set\n "
    f"- {precision_score(y_test, bcc.predict(X_test)):.3f} on the test set."
)

plot risk control binary classification

Out:

With the naive threshold, the precision is:
 - 0.801 on the calibration set
 - 0.763 on the test set.


With risk control, the precision is:
 - 0.886 on the calibration set
 - 0.857 on the test set.

Contrary to the naive way of computing a threshold to satisfy a precision target on calibration data, risk control provides statistical guarantees on unseen data. In this example, the naive threshold results in a precision on the test set that is lower than the target precision while risk control takes a margin to guarantee the target precision on unseen data with high probability. In the plot above, we can see that not all thresholds corresponding to a precision higher than the target are valid. This is due to the uncertainty inherent to the finite size of the calibration set, which risk control takes into account.

In particular, the highest threshold values are considered invalid due to the small number of observations used to compute the precision, following the Learn Then Test procedure. In the most extreme case, no observation is available, which causes the precision value to be ill-defined and set to 0.

Besides computing a set of valid thresholds, BinaryClassificationController also outputs the "best" one, which is the valid threshold that maximizes a secondary objective (recall here).

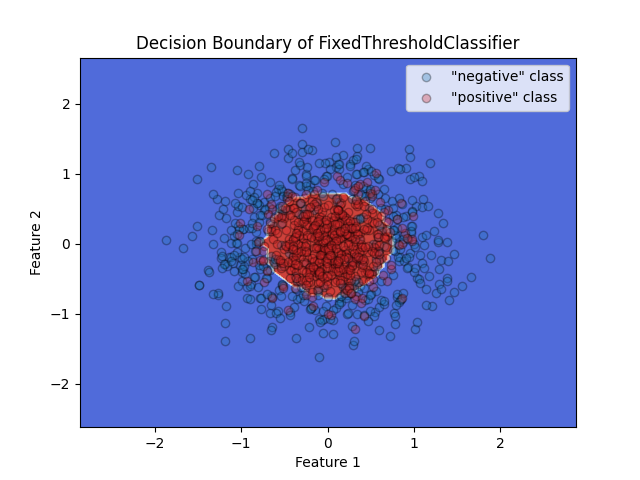

After obtaining the best threshold, we can use the predict function of BinaryClassificationController for future predictions, or use scikit-learn's FixedThresholdClassifier as a wrapper to benefit from functionalities like easily plotting the decision boundary as seen below.

y_pred = bcc.predict(X_test)

clf_threshold = FixedThresholdClassifier(clf, threshold=bcc.best_predict_param)
clf_threshold.fit(X_train, y_train)
# .fit necessary for plotting, alternatively you can use sklearn.frozen.FrozenEstimator


disp = DecisionBoundaryDisplay.from_estimator(
    clf_threshold, X_test, response_method="predict", cmap=plt.cm.coolwarm
)

plt.scatter(
    X_test[y_test == 0, 0],
    X_test[y_test == 0, 1],
    edgecolors="k",
    c="tab:blue",
    alpha=0.3,
    label='"negative" class',
)
plt.scatter(
    X_test[y_test == 1, 0],
    X_test[y_test == 1, 1],
    edgecolors="k",
    c="tab:red",
    alpha=0.3,
    label='"positive" class',
)
plt.title("Decision Boundary of FixedThresholdClassifier")
plt.xlabel("Feature 1")
plt.ylabel("Feature 2")
plt.legend()
plt.show()
