Estimating aleatoric and epistemic uncertainties¶
This example uses CrossConformalRegressor,
ConformalizedQuantileRegressor and
JackknifeAfterBootstrapRegressor to estimate
prediction intervals capturing both aleatoric and epistemic uncertainties
on a one-dimensional dataset with homoscedastic noise and normal sampling.
from typing import Any, Callable, Tuple, TypeVar
import matplotlib.pyplot as plt
import numpy as np
from sklearn.linear_model import LinearRegression, QuantileRegressor
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import PolynomialFeatures
from sklearn.model_selection import train_test_split
from numpy.typing import NDArray
from mapie.regression import (
CrossConformalRegressor,
ConformalizedQuantileRegressor,
JackknifeAfterBootstrapRegressor,
)
F = TypeVar("F", bound=Callable[..., Any])
RANDOM_STATE = 42
# Functions for generating our dataset
def x_sinx(x: NDArray) -> NDArray:
"""One-dimensional x*sin(x) function."""
return x * np.sin(x)
def get_1d_data_with_normal_distrib(
funct: F, mu: float, sigma: float, n_samples: int, noise: float
) -> Tuple[NDArray, NDArray, NDArray, NDArray, NDArray]:
"""
Generate noisy 1D data with normal distribution from given function
and noise standard deviation.
Parameters
----------
funct : F
Base function used to generate the dataset.
mu : float
Mean of normal training distribution.
sigma : float
Standard deviation of normal training distribution.
n_samples : int
Number of training samples.
noise : float
Standard deviation of noise.
Returns
-------
Tuple[NDArray, AnNDArrayy, NDArray, NDArray, NDArray]
Generated training and test data.
[0]: X_train
[1]: y_train
[2]: X_test
[3]: y_test
[4]: y_mesh
"""
rng = np.random.default_rng(RANDOM_STATE)
X_train = rng.normal(mu, sigma, n_samples)
X_test = np.arange(mu - 4 * sigma, mu + 4 * sigma, sigma / 20.0)
y_train, y_mesh, y_test = funct(X_train), funct(X_test), funct(X_test)
y_train += rng.normal(0, noise, y_train.shape[0])
y_test += rng.normal(0, noise, y_test.shape[0])
return (
X_train.reshape(-1, 1),
y_train,
X_test.reshape(-1, 1),
y_test,
y_mesh,
)
# Data generation
mu, sigma, n_samples, noise = 0, 2.5, 300, 0.5
X_train_conformalize, y_train_conformalize, X_test, y_test, y_mesh = (
get_1d_data_with_normal_distrib(x_sinx, mu, sigma, n_samples, noise)
)
# Definition of our base model
degree_polyn = 10
polyn_model = Pipeline(
[
("poly", PolynomialFeatures(degree=degree_polyn)),
("linear", LinearRegression()),
]
)
polyn_model_quant = Pipeline(
[
("poly", PolynomialFeatures(degree=degree_polyn)),
(
"linear",
QuantileRegressor(
alpha=0,
solver="highs", # highs-ds does not give good results
),
),
]
)
# Estimating prediction intervals
STRATEGIES = {
"jackknife_plus": {
"class": CrossConformalRegressor,
"init_params": dict(method="plus", cv=-1),
},
"cv_plus": {
"class": CrossConformalRegressor,
"init_params": dict(method="plus", cv=10),
},
"jackknife_plus_ab": {
"class": JackknifeAfterBootstrapRegressor,
"init_params": dict(method="plus", resampling=50),
},
"conformalized_quantile_regression": {
"class": ConformalizedQuantileRegressor,
"init_params": dict(),
},
}
y_pred, y_pis = {}, {}
for strategy_name, strategy_params in STRATEGIES.items():
init_params = strategy_params["init_params"]
class_ = strategy_params["class"]
if strategy_name == "conformalized_quantile_regression":
X_train, X_conformalize, y_train, y_conformalize = train_test_split(
X_train_conformalize,
y_train_conformalize,
test_size=0.3,
random_state=RANDOM_STATE,
)
mapie = class_(polyn_model_quant, confidence_level=0.95, **init_params)
mapie.fit(X_train, y_train)
mapie.conformalize(X_conformalize, y_conformalize)
y_pred[strategy_name], y_pis[strategy_name] = mapie.predict_interval(X_test)
else:
mapie = class_(
polyn_model, confidence_level=0.95, random_state=RANDOM_STATE, **init_params
)
mapie.fit_conformalize(X_train_conformalize, y_train_conformalize)
y_pred[strategy_name], y_pis[strategy_name] = mapie.predict_interval(X_test)
# Visualization
def plot_1d_data(
X_train: NDArray,
y_train: NDArray,
X_test: NDArray,
y_test: NDArray,
y_sigma: float,
y_pred: NDArray,
y_pred_low: NDArray,
y_pred_up: NDArray,
ax: plt.Axes,
title: str,
) -> None:
ax.set_xlabel("x")
ax.set_ylabel("y")
ax.set_xlim([-10, 10])
ax.set_ylim([np.min(y_test) * 1.3, np.max(y_test) * 1.3])
ax.fill_between(X_test, y_pred_low, y_pred_up, alpha=0.3)
ax.scatter(X_train, y_train, color="red", alpha=0.3, label="Training data")
ax.plot(X_test, y_test, color="gray", label="True confidence intervals")
ax.plot(X_test, y_test - y_sigma, color="gray", ls="--")
ax.plot(X_test, y_test + y_sigma, color="gray", ls="--")
ax.plot(X_test, y_pred, color="b", alpha=0.5, label="Prediction intervals")
if title is not None:
ax.set_title(title)
ax.legend()

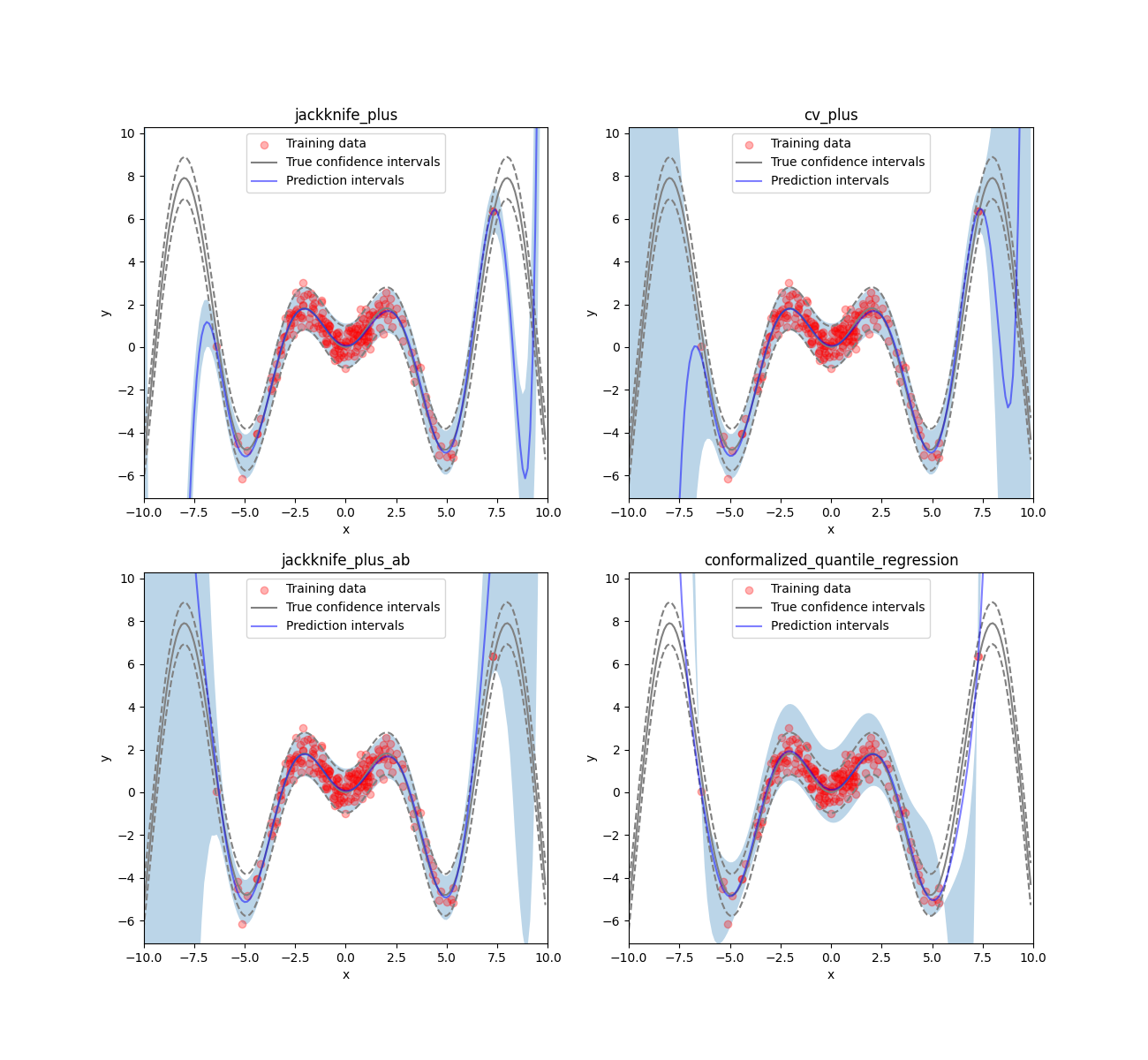

n_figs = len(STRATEGIES)
fig, axs = plt.subplots(2, 2, figsize=(13, 12))
coords = [axs[0, 0], axs[0, 1], axs[1, 0], axs[1, 1]]
for strategy, coord in zip(STRATEGIES, coords):
plot_1d_data(
X_train.ravel(),
y_train.ravel(),
X_test.ravel(),
y_mesh.ravel(),
1.96 * noise,
y_pred[strategy].ravel(),
y_pis[strategy][:, 0, 0].ravel(),
y_pis[strategy][:, 1, 0].ravel(),
ax=coord,
title=strategy,
)

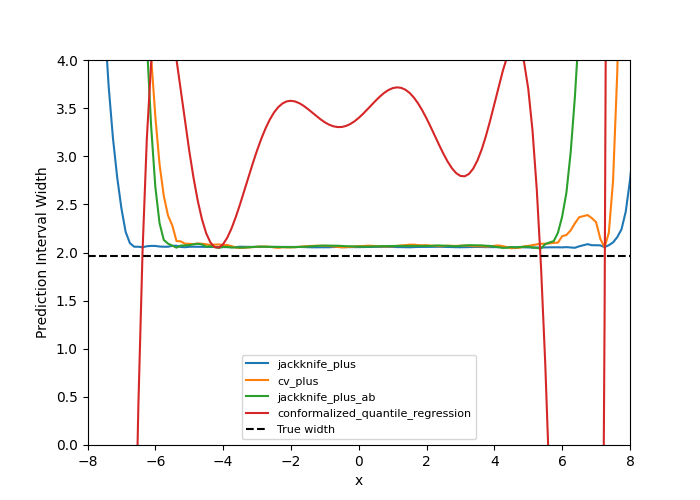

fig, ax = plt.subplots(1, 1, figsize=(7, 5))
ax.set_xlim([-8, 8])
ax.set_ylim([0, 4])
for strategy in STRATEGIES:
ax.plot(X_test, y_pis[strategy][:, 1, 0] - y_pis[strategy][:, 0, 0])
ax.axhline(1.96 * 2 * noise, ls="--", color="k")
ax.set_xlabel("x")
ax.set_ylabel("Prediction Interval Width")
ax.legend(list(STRATEGIES.keys()) + ["True width"], fontsize=8)
plt.show()
Total running time of the script: ( 0 minutes 1.203 seconds)
Download Python source code: plot_both_uncertainties.py
