Plot prediction intervals¶
An example plot of SplitConformalRegressor used
in the Quickstart.
We will use MAPIE to estimate prediction intervals on a one-dimensional, non-linear regression problem.
import numpy as np
from matplotlib import pyplot as plt
from numpy.typing import NDArray
from sklearn.neural_network import MLPRegressor
from mapie.metrics.regression import regression_coverage_score
from mapie.regression import SplitConformalRegressor
from mapie.utils import train_conformalize_test_split
RANDOM_STATE = 1
Firstly, let us create our dataset:
def f(x: NDArray) -> NDArray:
"""Polynomial function used to generate one-dimensional data."""
return np.array(5 * x + 5 * x**4 - 9 * x**2)
rng = np.random.default_rng(1)
sigma = 0.1
n_samples = 10000
X = np.linspace(0, 1, n_samples)
y = f(X) + rng.normal(0, sigma, n_samples)
X = X.reshape(-1, 1)
(X_train, X_conformalize, X_test, y_train, y_conformalize, y_test) = (
train_conformalize_test_split(
X,
y,
train_size=0.8,
conformalize_size=0.1,
test_size=0.1,
random_state=RANDOM_STATE,
)
)
We fit our training data with a MLPRegressor.
Then, we initialize a SplitConformalRegressor
using our estimator, indicating that it has already been fitted with
prefit=True.
Lastly, we compute the prediction intervals with the desired confidence level using
the conformalize and predict_interval methods.
regressor = MLPRegressor(activation="relu", random_state=RANDOM_STATE)
regressor.fit(X_train, y_train)
confidence_level = 0.95
mapie_regressor = SplitConformalRegressor(
estimator=regressor, confidence_level=confidence_level, prefit=True
)
mapie_regressor.conformalize(X_conformalize, y_conformalize)
y_pred, y_pred_interval = mapie_regressor.predict_interval(X_test)
y_pred represents the point predictions as a np.ndarray of shape
(n_samples).
y_pred_interval corresponds to the prediction intervals as a np.ndarray of
shape (n_samples, 2, 1), giving the lower and upper bounds of the intervals.
Finally, we can easily compute the coverage score (i.e., the proportion of times the true labels fall within the predicted intervals).
coverage_score = regression_coverage_score(y_test, y_pred_interval)
print(
f"For a confidence level of {confidence_level:.2f}, "
f"the target coverage is {confidence_level:.3f}, "
f"and the effective coverage is {coverage_score[0]:.3f}."
)
Out:
In this example, the effective coverage is slightly above the target coverage (i.e., 0.95), indicating that the confidence level we set has been reached. Therefore, we can confirm that the prediction intervals effectively contain the true label more than 95% of the time.
Now, let us plot the estimated prediction intervals.
plt.xlabel("x")
plt.ylabel("y")
plt.scatter(X_test, y_test, alpha=0.3)
X_test = X_test.ravel()
order = np.argsort(X_test)
plt.plot(X_test[order], y_pred[order], color="C1")
plt.plot(X_test[order], y_pred_interval[order][:, 0, 0], color="C1", ls="--")
plt.plot(X_test[order], y_pred_interval[order][:, 1, 0], color="C1", ls="--")
plt.fill_between(
X_test[order],
y_pred_interval[:, 0, 0][order].ravel(),
y_pred_interval[:, 1, 0][order].ravel(),
alpha=0.2,
)
plt.title("Estimated prediction intervals with MLPRegressor")
plt.show()

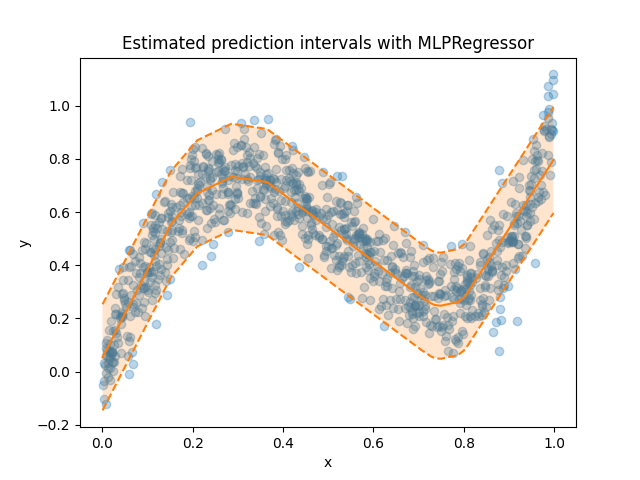

On the plot above, the dots represent the samples from our dataset, while the
orange area corresponds to the estimated prediction intervals for each x value.
Total running time of the script: ( 0 minutes 0.594 seconds)
